Hydraulic press brake AHK V 13040

CNCprecision

Overview

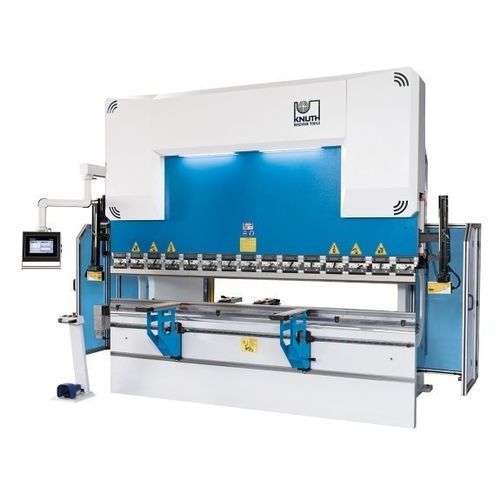

The AHK V 13040 CNC is a hydraulic press brake series designed for industrial sheet bending to European standards. Equipped with a DELEM graphical touchscreen CNC, this model offers precise control of bending processes, flexible backgauge configurations and robust mechanical construction suitable for repetitive production environments.

Highlights

• 40 t pressing capacity and 1,300 mm bending length
• DELEM graphical touchscreen CNC for efficient programming
• Premium hydraulic and electronic components
• Laser optical safety system (AKAS) at the tool
• Optional motorized crowning for uniform bends

Machine frame

• Steel frame made from certified raw material for high rigidity and accuracy
• Welded, stress-relieved construction with machined mounting surfaces on CNC centers
• Components under tensile load designed with large radii to avoid weld cracks
• Large prestressable top beam optimized to minimize deformation
• Measuring system holder compensates for deformations at maximum loads
• Guideways, piston bearings and seals sized for optimal vertical load absorption

Work area

• Large throat, long stroke and narrow table provide clearance for complex bending sequences

Crowning (optional)

• Motorized lower crowning ensures consistent bending results across the full bending length, especially for thicker sheets

Hydraulic system

• Custom-designed hydraulic cylinders manufactured and honed in-house
• Pistons forged, hardened, ground and chrome-plated for long service life
• Hydraulic blocks and valves from reputable manufacturers for lasting reliability
• Safety valves protect the system against overload conditions

Back gauge

• Robust, low-maintenance back gauge design
• Back gauge fingers adjustable quickly from the machine front with a safety tool

Front support arms

• Rigid support arms on linear guides, clampable at desired positions
• Gear-rack positioning allows quick vertical adjustment
• Industrial brushes protect and ease handling of metal sheets

Bending tools

• Promecam (European) tool mounts compatible with a wide selection of tools
• All tools hardened and ground for precise setup

Safety and productivity

• AKAS laser safety system monitors tool area without restricting functionality
• Safety concept based on current CE directives
• Rear light curtain and robust side guards secure the working area

Standard equipment

• DELEM DA-53T touchscreen (4-axis CNC)
• X-axis backgauge with linear guide and recirculating ball screw
• Quick clamping upper tool and EUROPEAN TYPE upper tool (835 mm segmented)
• EUROPEAN TYPE bottom tool 4V H: 60x60 mm
• AKAS laser-optical safety system and rear light barrier
• Foot pedal with emergency stop, 2 movable front support arms, 2 height-adjustable backgauge fingers
• ECO mode energy-saving function and operating manual

Technical specifications

• Pressing force: 40 t
• Bending length: 1,300 mm
• Distance between columns: 1,100 mm
• Throat depth: 310 mm
• Stroke: 210 mm
• Clear opening: 425 mm
• Table width: 110 mm
• Table height: 850 mm
• X-axis travel: 750 mm
• Bending speed: 10 mm/s
• Rapid feed: 180 mm/s
• Return speed: 120 mm/s
• X-axis feed speed: 600 mm/s
• Main drive power: 5.5 kW
• Hydraulic tank volume: 120 l
• Overall dimensions (L x W x H): 2.30 m x 2.50 m x 2.45 m
• Weight: 4,210 kg
