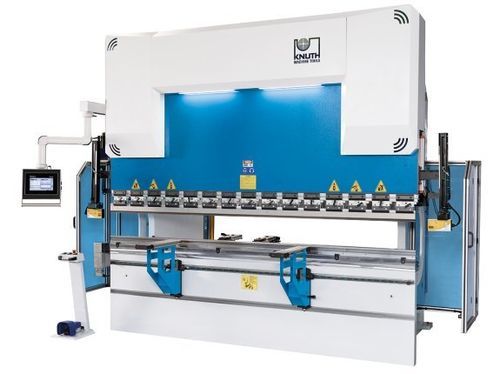

Electro-hydraulic press brake AHK V 30135 CNC

CNCprecision

Overview
The AHK V 30135 CNC press brake is a heavy-duty CNC press brake designed for industrial sheet metal bending according to European standards. It integrates modern design, high-precision manufacturing and a DELEM graphical touchscreen control to provide accurate, repeatable bending for small and large production runs.

Highlights

• High-precision machining and rigid steel frame
• Premium hydraulic and electronic components
• DELEM graphical touchscreen CNC control
• AKAS laser optical safety at the tool
• Options for motorized crowning and multiple back-gauge configurations

Machine frame

• Certified steel frame machined on high-end CNC centers to ensure rigidity and dimensional accuracy
• Stress-relieved welded construction with large radii on tensile parts to avoid welding cracks
• Prestressable top beam and reinforced measuring system holder to compensate deformation under load
• Guideways, piston bearings and seals sized for optimal vertical load absorption and long service life

Work area

• Generous throat depth, long ram stroke and narrow table provide clear access for complex bending sequences

Crowning (optional)

• Motorized lower crowning (optional) ensures uniform bend results across the full bending length, especially for thicker sheets

Hydraulic system

• Custom-designed hydraulic cylinders and in-house honed components for consistent performance
• Forged, hardened, ground and chrome-plated hydraulic pistons
• Hydraulic block and valves from reputable manufacturers for long-term reliability
• Safety valves protect the system from overload conditions

Back gauge

• Robust, low-maintenance back gauge design with fast front access adjustment of fingers for quick setup

Front support arms

• Rigid support arms run on linear guides and can be clamped in position; gear-rack vertical positioning for speed
• Industrial brushes protect sheet surfaces and assist handling

Bending tools

• Promecam (European) toolholders compatible with a wide selection of standard tooling
• Hardened and ground tools for precise setup and repeatability

Safety and productivity

• AKAS laser safety system monitors the tool area without restricting function
• Safety concept compliant with current CE directives; rear light curtain and robust side guards secure the work area

Technical specifications

• Press capacity: 135 t
• Bending length: 3,100 mm
• Distance between columns: 2,600 mm
• Throat (overhang): 410 mm
• Ram stroke: 265 mm
• Opening: 480 mm
• Table width: 110 mm
• Table height: 900 mm
• X-axis travel: 750 mm
• Bending speed: 10 mm/s
• Rapid feed: 160 mm/s
• Return speed: 130 mm/s
• X-axis feed speed: 600 mm/s
• Main drive power: 15 kW
• Hydraulic tank volume: 230 l
• Dimensions (L x W x H): 4.05 m x 2.55 m x 2.75 m
• Weight: approx. 9,000 kg
