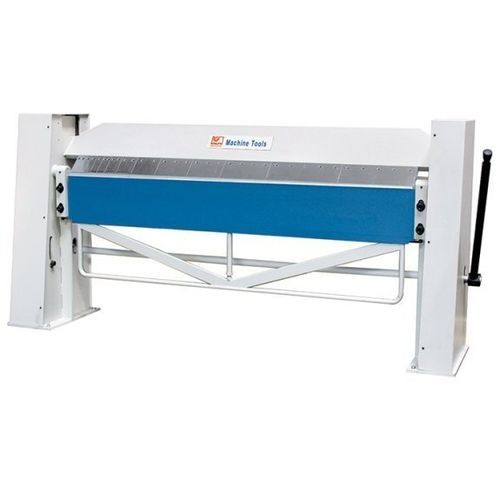

Sheet metal folding machine SBS E 2020/2,0

manualsegment

Description
The SBS E-series manual folding machines are heavy-duty, manually operated sheet metal folding machines designed for bending long metal sheets (models support lengths up to 3,000 mm). An adjustable angle stop enables repeatable bending for small series production.

Highlights

• Large bending lengths up to model limit
• Segmented upper tool for flexible bending configurations
• Built-in manual bending compensation
• Adjustable angle stop for repeatable angles
• Intuitive manual operation

Standard Equipment

• Segmented sharp-nose upper die
• Operator manual

Optional Equipment

• Manual back gauge (optional)

Technical tables

Working area
Working length: 2,020 mm
Plate thickness (max.) - 400 N/mm²: 2 mm
Working height: 920 mm

Male Die
Stroke: 120 mm

Bending Die
Maximum bending angle: 135°
Adjustment range for A axis: 15 mm

Measures and weights
Overall dimensions (length x width x height): 2.8 m x 0.85 m x 1.3 m
Weight: 1,025 kg

Notes / Additional product details

• Hardened, segmented upper die with individually removable segments for bending all sides of a basin.
• Robust construction designed for high accuracy and durable manual use.
• Adjustable angle stop allows production of small batches with consistent angles.

caractéristiques / spécifications techniques

• Working length: 2,020 mm
• Maximum plate thickness (400 N/mm²): 2 mm
• Working height: 920 mm
• Male die stroke: 120 mm
• Maximum bending angle: 135°
• Adjustment range for A axis: 15 mm
• Overall dimensions: 2.8 m x 0.85 m x 1.3 m
• Weight: 1,025 kg
• Segmented hardened upper tool (removable segments)
• Manual bending compensation (built-in)
• Adjustable angle stop
