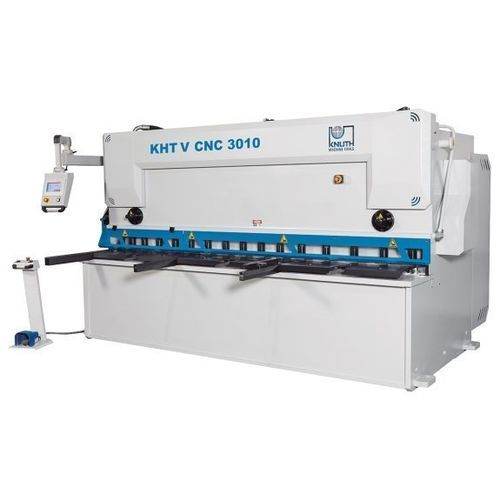

Hydraulic shear KHT V 3013 CNC

sheet metalguillotineCNC

Description
The KHT V CNC series hydraulic guillotine shears are manufactured in a modern production facility. A guided cutter bar with adjustable cutting angle minimizes sheet twist and reduces rework. The machine is operated via a touchscreen; cutting gap, angle and length are automatically positioned for optimal results. The robust back gauge and stainless-steel-compatible blades extend the machine's versatility. Accessories and options expand application range.

Highlights

• Cybelec Touch 8 control (CybTouch)
• Controlled back gauge with preloaded ball screw
• Controlled kerf (cutting gap) adjustment
• Controlled cutting angle adjustment
• Blades suitable for stainless steel (upper: 2 edges, lower: 4 edges)

Machine Frame

• Very rigid, heavy welded frame, stress-relieved and machined to tight tolerances
• Frame milled on state-of-the-art 5-axis machines in a single setup for precision and extended life
• Structural components designed with large radii to eliminate crack risks
• Table with bottom cutter mount and cutter bar optimized for minimal torsion and load distribution
• Two-coat paint system, each coat ≥ 60 μm

Material Support

• Large work table with roller balls and rigid lateral angular stop for safe plate alignment
• Long, sturdy front support arms for secure handling of large sheets

Hydraulics

• Polished pistons (≈2 μm surface) ensure long seal life
• Cylinder bodies forged from high-strength SAE 1040 material
• Reliable, low-maintenance hydraulic system that is service-friendly
• Hydraulically regulated hold-downs secure the sheet near the cut line during cutting

Back Gauge and Control

• User can enter length, thickness and material grade in the programmable control; system positions kerf, angle and cutting length automatically
• Robust back-gauge system suited for heavy production environments
• Linear guides and preloaded ball screws mounted in protective enclosures

Equipment

• Electrical components from renowned manufacturers for high availability
• Upper and lower knives suitable for stainless steel (upper knife: 2 cutting edges; lower knife: 4 cutting edges)
• Foot pedal operation with emergency stop; pedal position flexible for operator convenience
• ECO mode for reduced energy consumption (automatic pump stop after long idle periods)

Safety

• Safety features conform to current CE regulations
• Rear-mounted light barrier protects the work area

Technical specifications

• Working length: 3050 mm
• Throat depth (overhang): 150 mm
• Cutting angle: 0.5° – 2°
• Strokes per minute: 9 H/min – 17 H/min
• Hold-downs: 16 positions
• Hold-down capacity: 25 t
• Table size: 3380 mm x 560 mm x 830 mm
• Back gauge rear stop: 1000 mm
• Back gauge feed speed (X-axis): 9000 mm/min
• Front support arms: 2 positions; length: 1000 mm
• Cutting capacity (max.) at 450 N/mm²: 13 mm
• Cutting capacity (max.) at 700 N/mm²: 8 mm
• Main drive motor rating: 30 kW
• Hydraulic tank volume: 250 l
• Overall dimensions (L x W x H): 4.15 m x 3.6 m x 2.45 m
• Weight: 11,500 kg
