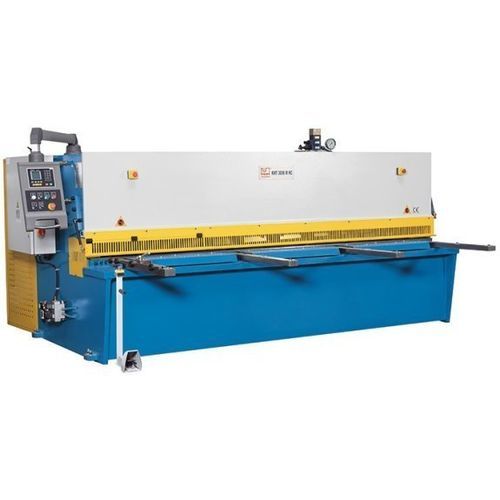

Hydraulic shear KHT 3008 M NC

sheet metalguillotineswing-beam

Product overview
The KHT 3008 M NC is a swing-beam hydraulic guillotine shear engineered for straight cuts and reliable release of cut parts. The cutting beam runs in a pivot bearing anchored in the machine body and the ESTUN E21 NC positions the robust back gauge precisely.

Highlights

• ESTUN E21 NC numerical control
• Back gauge with preloaded ball screws
• Pneumatic sheet hold-up device
• Upper and lower blades suitable for stainless steel
• Adjustable angular stop

Working area
Working length: 3.200 mm
Throat depth: 150 mm
Cutting angle: 1.5°
Strokes per minute: 10 H/min
Hold-down positions: 13
Hold-down capacity: 26 t
Table size: 3.530 mm x 500 mm x 800 mm

Back gauge
Rear stop travel: 1.000 mm
Feed speed X-axis: 2.280 mm/min

Front support arms
Number of support arms: 3
Support arm length: 1.000 mm

Cutting capacities
Max plate thickness (450 N/mm²): 8 mm
Min plate thickness (400 N/mm²): 0.8 mm
Max plate thickness (700 N/mm²): 5 mm
Min plate thickness (700 N/mm²): 0.8 mm

Drive capacity
Main drive motor rating: 11 kW
Hydraulic tank volume: 250 l

Measures and weights
Overall dimensions (L x W x H): 3.85 m x 1.85 m x 1.76 m
Weight: 8.300 kg

Product details

• Machine frame: stress-relieved welded steel frame with swing-beam design to restore distance between upper and lower blade after each cut, enabling low-torsion cuts and easy gap adjustment.
• Material support: large work table with ball rollers and a rigid adjustable angular stop; long sturdy support arms for handling large plates.
• Hydraulics: reliable, low-maintenance hydraulic system; hydraulically regulated hold-downs secure the sheet close to the cut line.
• Back gauge: robust system for demanding production environments; preloaded ball screws mounted in a protective enclosure.
• Equipment: ESTUN E21 NC for precise positioning (single and program runs); mobile foot pedal with emergency stop; shadow/laser-like guide for cut-line alignment; blades suitable for stainless steel.
• Safety: full-length finger guard with flip-up section (to 1.000 mm) for improved visibility; CE-compliant safety features; rear light barrier protecting the back working area.

Standard Equipment

• NC control ESTUN E21S (back gauge positioning, program capability)
• Pneumatic sheet hold-up device
• NC-controlled back gauge
• Shadow light cutting line
• Front support arms (3 positions; 1.000 mm length)
• Foot pedal with emergency stop
• Manual cutting gap adjustment
• Full-length finger guard with flip-up section
• Rear area light barrier
• Upper and lower knives for stainless steel
• Operating tools and manual

Optional Equipment

• Hydraulic oil cooler (recommended for series production)
• Automatic central lubrication
• Additional blade set (upper and lower knives with multiple cutting sides)

Technical specifications

• Model: KHT 3008 M NC
• Working length: 3.200 mm
• Throat depth: 150 mm
• Cutting angle: 1.5°
• Strokes: 10 H/min
• Hold-down positions: 13
• Hold-down capacity: 26 t
• Table size: 3.530 x 500 x 800 mm
• Back gauge rear stop: 1.000 mm
• Back gauge feed speed: 2.280 mm/min
• Front support arms: 3 × 1.000 mm
• Cutting capacity (450 N/mm²): 0.8–8 mm
• Cutting capacity (700 N/mm²): 0.8–5 mm
• Main drive motor: 11 kW
• Hydraulic tank: 250 l
• Overall dims (L × W × H): 3.85 m × 1.85 m × 1.76 m
• Weight: 8.300 kg
