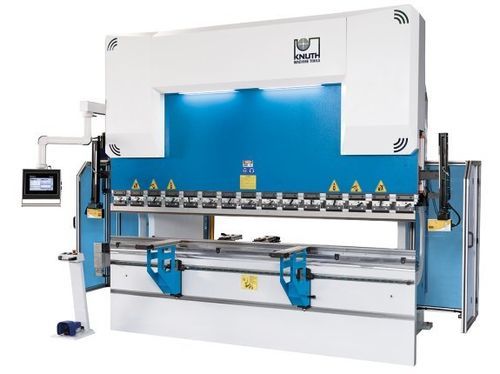

Hydraulic press brake AHK V 30320 CNC

CNCprecision

Product Overview
The AHK V 30320 CNC is a 320‑ton CNC press brake with a 3,100 mm bending length designed for industrial sheet‑metal forming. Engineered for precision and repetitive production, it integrates a DELEM graphical touchscreen for efficient CNC programming and process control.

Highlights

• 320 t pressing capacity with 3,100 mm working length
• DELEM graphical touchscreen CNC for multi‑axis control
• Robust welded steel frame machined on high‑end CNC centers
• Promecam tool clamping and hardened, ground tools
• Laser optical AKAS safety at the tool

Machine frame

• Certified steel construction, stress‑relieved welds and precision machined mounting surfaces
• Large prestressable top beam to minimize deformation under load
• Design features and large radii on tensile parts to reduce crack risk
• Guideways, piston bearings and seals sized for long service life

Work Area

• Generous throat depth and long stroke with a narrow table to facilitate complex bending sequences and large parts handling

Crowning (model dependent)

• Optional motorized lower crowning for consistent bending accuracy across the full bending length on thicker sheets

Hydraulic system

• Custom‑designed hydraulic cylinders and in‑house honed components
• Forged, hardened, ground and chrome‑plated pistons for durability
• Hydraulic blocks and valves from reputable manufacturers; safety valves protect against overloads

Back Gauge

• Robust, low‑maintenance design with easily adjustable fingers accessible from the front

Front Support Arms

• Rigid support arms on linear guides, clampable in position; gear‑rack vertical adjustment and industrial brushes to protect sheet surfaces

Bending Tools

• Promecam (European) toolholders compatible with a wide range of tooling; tools hardened and ground for precise set‑up

Safety and Productivity

• AKAS laser safety system at the tool without limiting functionality
• Safety concept compliant with current CE requirements; rear light curtain and robust side guards

Standard Equipment (selection)

• DELEM DA‑53T 4‑axis touch CNC control (10.1" TFT multi‑touch)
• X‑axis backgauge with linear guide and recirculating ball screw
• Motorised crowning
• Quick clamping upper tool and European tool clamping system
• AKAS laser optical safety, rear light barrier, foot pedal with emergency stop
• 2 movable front support arms; 2 height‑adjustable backgauge fingers; ECO energy‑saving mode

Optional Equipment (selection)

• X‑, R‑, Z1‑, Z2‑axis backgauge systems up to 3,700 mm
• Additional backgauge fingers and support arms; electrical cabinet air conditioning
• Upgrades: DELEM DA58/DA66T/DA69T controllers; PressMax DRM EcoPower; extended upper tool height

Datasheet / Brochure
Datasheet available for this model (product brochure / datasheet).

Technical specifications

• Pressing capacity: 320 t
• Bending length: 3.100 mm
• Distance between columns: 2.600 mm
• Throat depth: 410 mm
• Stroke: 265 mm
• Clear opening: 480 mm
• Table width: 110 mm
• Table height: 920 mm
• X‑axis travel: 750 mm
• Bending speed: 8 mm/s
• Rapid feed: 140 mm/s
• Return speed: 130 mm/s
• X‑axis feed speed: 600 mm/s
• Main drive rating: 30 kW
• Hydraulic tank volume: 350 l
• Overall dimensions (L x W x H): 4,1 m x 2,75 m x 3 m
• Weight: 15.600 kg
