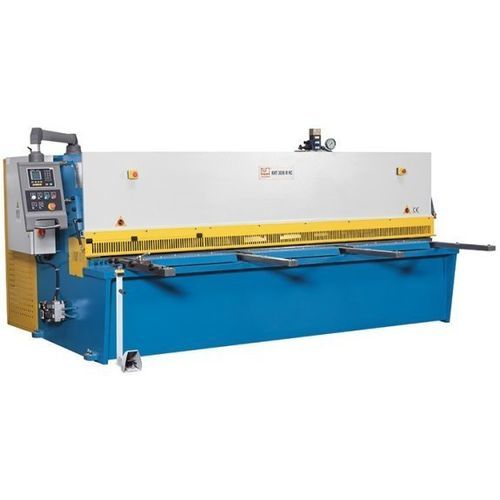

Hydraulic shear KHT 2006 M NC

sheet metalguillotineswing-beam

Overview
The KHT 2006 M NC hydraulic guillotine shear is built on a swing-beam design to deliver straight, reliable cuts. The cutting beam is guided in a pivot bearing anchored in the machine body, preventing upper and lower blade jamming. The robust back gauge is positioned precisely by the ESTUN E21 NC controller.

Highlights

• ESTUN E21 NC control for precise positioning
• Back gauge with preloaded ball screws
• Pneumatic plate hold‑up system
• Upper and lower blades suitable for stainless steel
• Adjustable angular stop

Working area (technical data)
Working length: 2,000 mm
Working length (insert depth 750 mm): 1,900 mm
Throat depth: 150 mm
Cutting angle: 1.5°
Strokes per minute: 20 H/min
Hold‑downs: 9 positions
Hold‑down capacity: 14 t
Table size: 2,270 mm x 400 mm x 800 mm

Back Gauge
Rear stop: 1,000 mm
Feed speed X‑axis: 2,280 mm/min

Front Support Arms
Number of support arms: 3 positions
Length of support arms: 1,000 mm

Cutting Capacities
Plate thickness (max.) – 450 N/mm²: 6 mm
Plate thickness (min.) – 400 N/mm²: 0.6 mm
Plate thickness (max.) – 700 N/mm²: 4 mm
Plate thickness (min.) – 700 N/mm²: 0.6 mm

Drive capacity
Main drive motor rating: 7.5 kW
Hydraulic tank volume: 190 l

Measures and weights
Overall dimensions (L x W x H): 2.5 m x 2.15 m x 1.9 m
Weight: 4,500 kg

Product details

• Machine frame: Heavy stress‑relieved welded steel frame with swing‑beam design. The cutter beam swings so the gap between upper and lower knife is restored automatically after each cut — reducing torsion, easing part release and extending blade life.
• Material support: Large work table with roller balls and a rigid adjustable angular stop for safe plate alignment. Long, sturdy support arms secure large sheets.
• Hydraulics: Reliable, low‑maintenance hydraulic system. Hydraulically regulated hold‑downs secure the plate close to the cut line during cutting.
• Back gauge: Robust back gauge system suited for demanding production. Preloaded ball screws are mounted in a protective enclosure.
• Equipment: ESTUN E21 NC positions the back gauge precisely in single cuts and program runs. Mobile foot pedal with emergency‑stop. Cut line visible as a shadow graph. Blades suitable for stainless steel.
• Safety: Continuous full‑length finger guard (foldable up to 1,000 mm) for improved view of the cut line. Safety features comply with CE regulations. Rear light barrier protects the work area.

Technical specifications

• Model: KHT 2006 M NC
• Working length: 2,000 mm
• Throat depth: 150 mm
• Cutting angle: 1.5°
• Strokes: 20 H/min
• Hold‑down capacity: 14 t
• Table size: 2,270 x 400 x 800 mm
• Back gauge rear stop: 1,000 mm
• Back gauge feed speed X‑axis: 2,280 mm/min
• Support arms: 3 positions, length 1,000 mm
• Cutting capacities: up to 6 mm @ 450 N/mm²; up to 4 mm @ 700 N/mm²; min. thickness 0.6 mm
• Main motor: 7.5 kW
• Hydraulic tank volume: 190 l
• Overall dimensions (L x W x H): 2.5 m x 2.15 m x 1.9 m
• Weight: 4,500 kg
