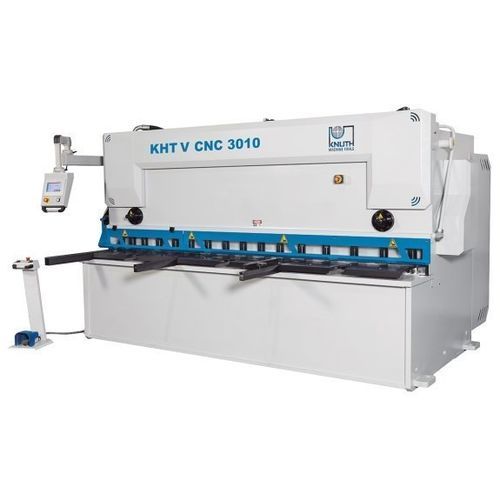

Hydraulic shear KHT V 3010 CNC

sheet metalguillotineCNC

Overview
The hydraulic guillotine shear KHT V 3010 CNC is engineered for industrial plate cutting where precision, repeatability and uptime are required. The guided cutter bar with adjustable cutting angle minimizes part twist and reduces rework. The Cybelec touchscreen control automates kerf, angle and length settings for efficient, repeatable results. Standard blades are suitable for stainless steel and a robust backgauge ensures accurate positioning. A range of accessories expands application flexibility.

Highlights

• Cybelec Touch 8 (CybTouch 8 G) touchscreen control
• Controlled back gauge with preloaded ball screw
• Controlled kerf (blade gap) adjustment
• Controlled cutting angle adjustment
• Upper and lower knives suitable for stainless steel
• Foot pedal operation with emergency stop
• ECO-mode for reduced energy consumption

Machine frame

• Heavy welded frame, stress-relieved after welding for high rigidity
• Frame machined on 5-axis milling machine in one setup to ensure precision
• Tensile-loaded components designed with large radii to prevent cracking
• Table with lower knife mount and cutter bar designed to minimize torsion and optimize load distribution
• Painted in a two-coat modern paint/drying process (each coat ≥ 60 µm)

Material support

• Large work table with roller balls for easy handling
• Rigid lateral angular stop for safe plate alignment
• Long, sturdy front support arms for handling large plates

Hydraulics

• Polished pistons on both hydraulic cylinders (2 µm surface grade) for long seal life
• Cylinder bodies forged from high-strength SAE 1040 material
• Reliable, low-maintenance, service-friendly hydraulic system
• Hydraulically regulated hold-downs secure the sheet close to the cut line during cutting

Back gauge and control

• User inputs length, thickness and material strength; control automatically selects kerf, cutting angle and cutting length
• Robust back gauge suitable for heavy production environments
• Linear guides and preloaded ball screws mounted in protective enclosure

Equipment

• Electric components from reputable manufacturers for high availability
• Upper knife with 2 cutting edges and lower knife with 4 cutting edges (suitable for stainless steel)
• Foot pedal with emergency stop; pedal can be located in the most convenient position
• ECO-mode for energy savings (automatic pump shut-down after prolonged stops, restart via control)

Safety

• Safety concept compliant with current CE regulations
• Rear-mounted light barrier system to protect the work area

Technical specifications

• Model: KHT V 3010 CNC
• Working length: 3.050 mm
• Throat depth: 150 mm
• Cutting angle: 0.5° - 2°
• Strokes per minute: 10 H/min - 19 H/min
• Hold-downs: 16 positions
• Hold-down capacity: 25 t
• Table size: 3.380 mm x 550 mm x 830 mm
• Back gauge rear stop: 1.000 mm
• Back gauge feed speed (X-axis): 9.000 mm/min
• Front support arms: 2 positions
• Length of support arms: 1.000 mm
• Cutting capacity (450 N/mm²): 10 mm (max)
• Cutting capacity (700 N/mm²): 6 mm (max)
• Main drive power: 22 kW
• Hydraulic tank volume: 200 l
• Overall dimensions (L x W x H): 4,15 m x 3,6 m x 2,1 m
• Weight: 9.600 kg
