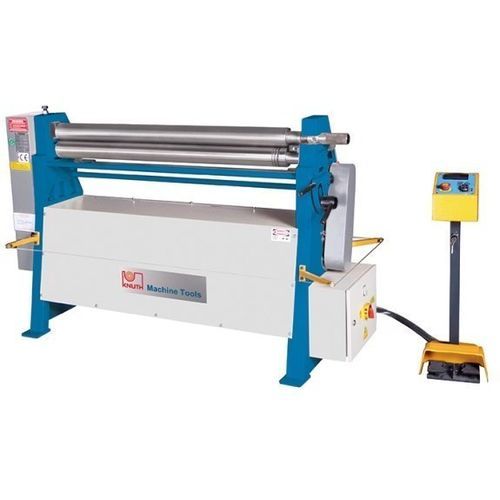

3-roller plate bending machine KRM AT 15/2,0

manualconicalasymmetrical

Description
All machines in the KRM AT series feature asymmetrical rolls that provide optimum traction even on thin metal sheets during the stretch-bending phase, enabling high-precision bending. The rear roll is adjusted manually. The upper roll swivels outward for easy removal of tube-shaped bent workpieces.

Highlights

• Asymmetrical roll arrangement for improved traction
• Main motor with brake for accurate positioning
• Hardened rollers with wire insertion grooves (4/6/9 mm)
• Conical bending feature included

Product details

• 3-roller plate roller with asymmetrically positioned rolls
• Rigid machine frame in ductile cast iron
• Hardened rollers suitable for stainless steel
• Main drive motor (1.5 kW) with brake system
• Pull-out top roller with eccentric lock for easy workpiece removal
• Bottom and rear rollers fitted with wire insertion grooves as standard
• Conical bending capability included in standard equipment (reduced capacity for conical bending)
• Manual rear roll feed
• Mobile control panel with foot switch for left/right rotation

Standard equipment (selected)

• Conical bending feature
• Hardened rollers
• Wire insertion grooves on rollers
• Emergency-stop safety rope
• Separate control panel with foot switch
• Side cover for motor protection
• Operating manual

Optional equipment (selected)

• Digital readout for back roll position
• Motorized back roll adjustment (control from panel with positioning ruler)

Technical specifications

• Working length: 1,550 mm
• Maximum plate thickness (450 N/mm²): 2 mm
• Maximum plate thickness (700 N/mm²): 1.8 mm
• Max. plate thickness for conical bending: 1.8 mm
• Roll diameter: 90 mm
• Roller speed: 6 m/min
• Wire groove diameters: 4 / 6 / 9 mm
• Main drive motor power: 1.5 kW
• Overall dimensions (L x W x H): 2.13 m x 0.7 m x 1.2 m
• Weight: 580 kg
