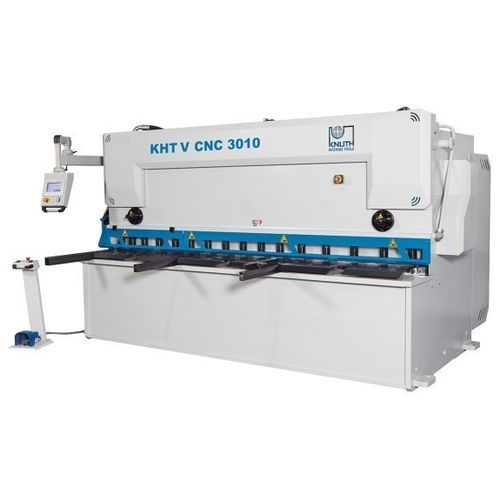

Hydraulic shear KHT V 3016 CNC

sheet metalguillotineCNC

Overview
The KHT V 3016 CNC guillotine shears are CNC-controlled hydraulic shears designed for precise sheet cutting in industrial production. The guided cutter bar with adjustable cutting angle minimizes workpiece torsion and reduces rework. The touchscreen control automates kerf, cutting angle and length positioning. Standard blades are suitable for stainless steel; optional accessories extend machine capability.

Highlights

• Cybelec Touch 8 control
• Controlled back gauge with preloaded ball screw
• Controlled kerf (cutting gap) adjustment
• Controlled cutting angle adjustment
• Blades suitable for stainless steel

Technical specifications

• Model: KHT V 3016 CNC
• Manufacturer: KNUTH
• Control: Cybelec Touch 8 (CybTouch 8 G)
• Working length: 3,050 mm
• Throat depth: 150 mm
• Cutting angle: 0.5° – 2°
• Strokes per minute: 7 – 12 H/min
• Hold-down positions: 16
• Hold-down capacity: 25 t
• Table size: 3,400 mm x 560 mm x 850 mm
• Back gauge rear stop: 1,000 mm
• Back gauge feed speed (X): 9,000 mm/min
• Support arms: 2 positions, length 1,000 mm
• Cutting capacity (450 N/mm²): 16 mm
• Cutting capacity (700 N/mm²): 10 mm
• Main drive motor rating: 37 kW
• Hydraulic tank volume: 315 l
• Overall dimensions (L x W x H): 4.15 m x 3.8 m x 2.5 m
• Weight: 18,500 kg

Product Details

• Machine frame: Welded heavy frame, stress-relieved and machined on 5-axis equipment in a single setup to ensure dimensional accuracy and minimize torsion. Structural components use large radii to avoid crack initiation and extend service life.
• Material support: Large work table with ball rollers and rigid lateral angle stop for safe sheet alignment; long, sturdy support arms for handling large plates.
• Hydraulics: Polished pistons (surface grade ~2 μm) and forged SAE 1040 cylinder bodies for long seal life. The hydraulic system is reliable, low-maintenance and service-friendly. Hydraulically regulated hold-downs secure the sheet near the cut line.
• Back gauge & control: User can enter length, thickness and material strength in the programmable control; system automatically positions kerf, cutting angle and cutting length. Back gauge uses linear guides and preloaded ball screws mounted in a protective enclosure for robust production use.
• Equipment: Electric components from reputable manufacturers; upper and lower knives suitable for stainless steel (upper 2 edges, lower 4 edges). Mobile foot pedal with emergency stop and optional ECO mode for energy savings.
• Safety: Safety features comply with current CE regulations. Rear-mounted light barrier protects the working area.
