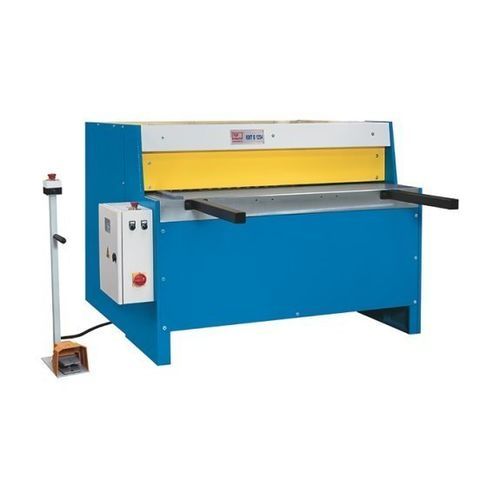

Electric shear KMT B 2053

sheet metalguillotinemotorized

Overview
The KMT B series is designed for processing long or thick sheet metal in metalworking shops, for repairs and single-piece production. The motorized guillotine shear features a modern, rigid construction with guided cutter bars to minimize twist in the workpiece. Cutting length is positioned manually and precisely at the back gauge.

Highlights

• Fully welded steel frame
• Long, rugged support arms
• Mobile control unit with foot switch
• Manual back gauge with counter (rear‑of‑machine operation)

Machine Frame and Drive System

• Rigid, fully welded steel machine frame
• Rubber-coated hold‑down fixes the plate automatically
• Small knife angle for accurate cuts

Material Support

• Rigid side angle stop simplifies plate alignment to the cut line
• Sturdy support arms secure large plates on the support table

Operation and Ergonomics

• Illuminated cut line provides clear visibility of the marking
• Mobile control unit with foot switch frees both operator hands

Back Gauge

• Manual back gauge with counter
• Robust and rigid back gauge for everyday production use
• Work area at the back gauge is fitted with safety panels

Technical data (from product tables)
Working area
Working length: 2.050 mm
Cutting angle: 2°
Strokes per minute (automatic mode): 27 H/min
Knife length: 2.100 mm
Work table height: 830 mm
Support arms: 600 mm
Number of support arms: 3 positions

Back Gauge
Rear stop: 630 mm

Cutting Capacities
Plate thickness (max.) - 450 N/mm²: 0.8 mm - 3 mm

Drive capacity
Main motor rating: 4 kW

Measures and weights
Overall dimensions (L x W x H): 2.5 m x 1.6 m x 1.19 m
Weight: 1,520 kg

Product details / Technical specifications

• Model: KMT B 2053
• Type: Motorized guillotine shear
• Working length: 2.050 mm
• Knife length: 2.100 mm
• Cutting angle: 2°
• Strokes (automatic): 27 H/min
• Work table height: 830 mm
• Support arms: 600 mm (3 positions)
• Back gauge rear stop: 630 mm (manual with counter)
• Max. plate thickness (450 N/mm²): 0.8–3 mm
• Main motor rating: 4 kW
• Overall dimensions: 2.5 m x 1.6 m x 1.19 m
• Weight: 1,520 kg
