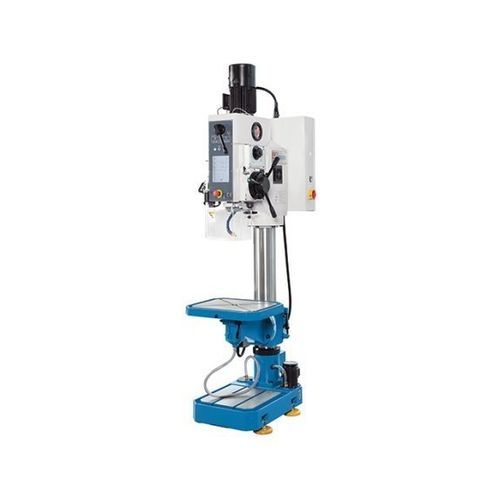

Column type drilling machine SSB 40 F Super VT

for steelvariable speedM24

Description
SSB F Super VT Series drill presses are designed for workshops handling maintenance, custom parts and small-series production. These column drills combine a sturdy cast-iron construction with an intuitive 8" touchscreen control that guides the operator in selecting machining parameters. Spindle speed is infinitely variable and the quill feed uses a robust manual transmission. The table features motorized vertical travel, simplifying handling of heavy workpieces.

Highlights

• 8" touchscreen control panel with operator support functions
• Automatic quill feed with manual transmission
• Infinitely variable spindle speed control (inverter)
• Motorized table height adjustment for easier part handling
• Swiveling and rotating work table with diagonal T-slots
• 3-year warranty on the touchscreen

Product details

• Suitable for drilling, countersinking, reaming and tapping
• Very rigid design with thick-walled column and large throat
• Base, column, table and gear head made of high-quality cast iron
• Large work table with diagonal chip flutes; can be swiveled and rotated
• Table height adjusted via powerful motorized drive (motorized travel 430 mm)
• Robust 8" touchscreen with intuitive operation and parameter selection help
• Spindle speed adjustable in two gear stages via inverter for wide speed range
• Coolant device and workplace LED lamp included as standard accessories
• Auxiliary gears for the main spindle run in an oil bath for high reliability and low wear
• Automatic quill feed engaged via electromagnetic coupling without manual force
• Manual operation allows exact drilling depth setting with capstan stop system
• Spray-protected LED work light for bright, energy-efficient illumination
• Thread cutting function included as standard

Technical specs (table)
Working area
Drilling capacity: 40 mm
Tapping capacity, steel: M24
Table set up area: 540 mm x 440 mm
Quill stroke: 190 mm
Manual table travel: 540 mm
Powered table travel: 430 mm
Table swivel range (max.): ±50°
Column diameter: 140 mm
Spindle nose-to-table surface distance: 595 mm
Spindle nose-to-foot distance: 1.195 mm
Throat depth: 340 mm
Table load capacity: 120 kg

Headstock
Speed range: 60 1/min - 2,600 1/min
Spindle mount: 4 MT

Feed
Quill feeds: 0.1, 0.2, 0.3, 0.4 mm/R

Drive capacity
Motor rating main drive: 2 kW

Measures and weights
Overall dimensions (L x W x H): 0.88 m x 0.64 m x 2.23 m
Weight: 565 kg

Technical features

• Drilling capacity: 40 mm
• Tapping capacity (steel): M24
• Table area: 540 x 440 mm
• Quill stroke: 190 mm
• Manual / powered table travel: 540 mm / 430 mm
• Table swivel: ±50°
• Column diameter: 140 mm
• Spindle nose-to-table: 595 mm
• Throat depth: 340 mm
• Table load capacity: 120 kg
• Speed range: 60 – 2,600 rpm (infinitely variable)
• Spindle mount: 4 MT
• Quill feeds: 0.1 / 0.2 / 0.3 / 0.4 mm/rev
• Main motor rating: 2 kW
• Overall dims (L×W×H): 0.88 m × 0.64 m × 2.23 m
• Weight: 565 kg
