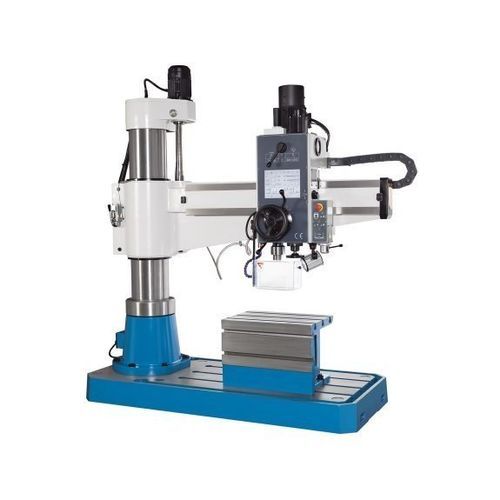

Radial drilling machine R 40 VT PRO

for steelvariable speedservo-electric

Product overview
The R-VT PRO models are the next generation of conventional radial drill presses designed for precise drilling, countersinking and thread cutting in single-part and small-batch production. The intuitive control concept with large touchscreen simplifies parameter selection and supports repeatable machining. Typical applications include maintenance, toolmaking and steel construction.

Highlights

• Intuitive touchscreen control with rpm/feed recommendations
• Servomotor-driven quill feed for precise electronic control
• Rigid cast construction with large column and torsion-resistant boom
• Motorized boom height adjustment with oil-bath lifting gears
• 3-year warranty on the touchscreen

Key product details

• Base, column, boom and gear head manufactured from premium castings
• Boom height adjustment via powerful motorized drive and vertical spindle
• Boom lifting gears run in an oil bath for low wear and high reliability
• Swivel and travel axes engineered for smooth operation and operator comfort
• Central lubrication system for reliable column lubrication
• Electronically controlled servo quill feed with large touchscreen display
• Drilling depth is set electronically and the input value is verified by the system
• Units selectable between mm and inch
• High-performance coolant system activated from the touchscreen and linked to spindle operation
• Two gear steps with stepless rpm variation displayed on the monitor
• Quill automatically returns to start at preset depth; thread cutting manual unless optional automatic thread cutting enabled
• Operator can set boom height via touchscreen; system automatically releases/fixates hydraulic clamps and respects limit stops
• Drill head and column can be clamped/released together or separately
• Boom can be moved vertically without losing spindle-to-bore alignment
• Control software provides rpm and feed recommendations for drill sizes and alarm screens for operational errors

Automatic thread cutting option (optional for R 40 VT PRO / R 60 VT PRO / R 80 VT PRO)

• Automatic thread cutting function enabled from the touchscreen
• Correct pitch and recommended rpm are read from internal database depending on tap size
• Thread cutting performed with automatic feed; spindle speed synchronized with thread lead and depth stop limits thread depth
• On reaching preset depth spindle reverses and quill returns automatically

Technical specifications (table)
Working area
Drilling capacity: 40 mm
Drilling capacity, cast iron: 52 mm
Tapping capacity, cast iron: M40
Tapping capacity, steel: M30
Maximum drilling depth: 250 mm
Throat depth: 300 mm - 1,300 mm
Spindle nose-to-table surface distance: 300 mm - 1,200 mm
Drill head travel (horizontal): 1,000 mm

Headstock
Speed range: 74 1/min - 2,200 1/min
Spindle mount: 4 MT

Feed
Feeds: 0 mm/min - 300 mm/min

Drive capacity
Main motor rating: 2.2 kW
Stroke motor: 1.1 kW

Measures and weights
Overall dimensions (L×W×H): 2.07 m × 1.02 m × 2.51 m
Weight: 2,300 kg

Characteristics / technical specifications

• Model: R 40 VT PRO
• Manufacturer: KNUTH
• Drilling capacity (steel): 40 mm
• Drilling capacity (cast iron): 52 mm
• Tapping capacity (steel): M30
• Tapping capacity (cast iron): M40
• Maximum drilling depth: 250 mm
• Throat depth range: 300 mm – 1,300 mm
• Spindle nose-to-table distance: 300 mm – 1,200 mm
• Horizontal drill head travel: 1,000 mm
• Speed range: 74 – 2,200 rpm
• Spindle mount: 4 MT
• Feed range: 0 – 300 mm/min
• Main motor: 2.2 kW; Quill (stroke) motor: 1.1 kW
• Dimensions L×W×H: 2.07 m × 1.02 m × 2.51 m
• Weight: 2,300 kg
• Features: servomotor-driven quill feed, touchscreen control with rpm/feed recommendations, motorized boom height adjustment, oil-bath boom gears, central lubrication, optional automatic thread cutting
• Warranty: 3-year warranty on touchscreen
