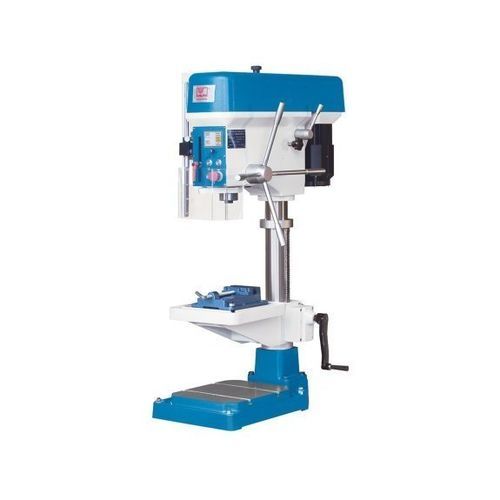

Vertical drilling machine KB 20 SV

column typevariable speedcompact

Overview
The KB 20 SV column drill is a compact industrial drilling machine designed for light drilling tasks, single-part manufacture and manual batch production in workshops and production facilities. It combines an almost maintenance-free infinitely variable drive with a touchscreen control for quick access to functions such as drilling and thread cutting.

Key features

• Compact worktable design
• Touchscreen control for function selection
• Integrated LED work light
• Thread-cutting unit with automatic reversal
• Infinitely variable main spindle speed

Technical specifications (detailed)
Working area
Drilling capacity: 20 mm
Tapping capacity (max.): M 16
Table set up area: 255 mm x 255 mm
Spindle nose-to-table surface distance: 366 mm
Spindle nose-to-foot distance: 678 mm
Throat depth: 240 mm
Column diameter: 85 mm
Quill stroke: 135 mm

Headstock
Speed range: 205 1/min - 2,045 1/min
Spindle mount: 2 MT

Drive capacity
Motor rating main drive: 1.1 kW

Measures and weights
Overall dimensions (L x W x H): 1 m x 0.56 m x 1.4 m
Weight: 179 kg

Product details

• Modern design with high-quality cast-iron construction for rigidity and long-term stability
• Heavy, precision-ground worktable with diagonal T-slots
• Very smooth height adjustment of the drill table, even under high loads
• Large base plate with ground setup area and parallel T-slots
• Forward and reverse operation with automatic reversal for thread cutting
• Hardened and ground spindle shank and spindle
• Robust belt drive and quiet, powerful motor
• Integrated LED work lamp as standard
• V models: infinitely variable speed via potentiometer
• V models: touchscreen for comfortable selection of drilling, thread-cutting and setup operations
• Control unit displays limit switches and functions such as coolant, rpm and work lamp status

Standard equipment

• Drill chuck
• Drill bushes / arbors
• Drill vise
• Thread-cutting unit
• Operating tools
• LED work lamp
• User manual

Characteristics / technical specifications

• Model: KB 20 SV
• Brand: KNUTH
• Category: Column drilling machine
• Drilling capacity: 20 mm
• Tapping capacity (max.): M16
• Table area: 255 mm x 255 mm
• Spindle nose-to-table: 366 mm
• Spindle nose-to-foot: 678 mm
• Throat depth: 240 mm
• Column diameter: 85 mm
• Quill stroke: 135 mm
• Speed range: 205 - 2,045 1/min
• Spindle mount: 2 MT
• Main motor rating: 1.1 kW
• Overall dimensions (L x W x H): 1 m x 0.56 m x 1.4 m
• Weight: 179 kg
