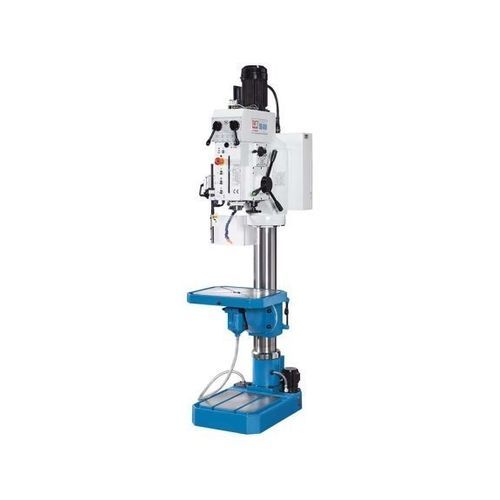

Vertical drilling machine SSB 40 Xn

column typerotating tablefor steel

Overview
The SSB Xn series column drilling machines are engineered for workshop repair and production. Thick-walled column, robust gearboxes and powerful drives deliver stability for machining small components as well as large, heavy parts and assemblies. Proven in service for more than 20 years.

Highlights

• Tilting and rotatable work table for angled drilling
• Automatic drilling feed with electromagnetic clutch
• Three quill feed rates for process flexibility
• Integrated coolant system with pump
• LED work light and tool-ejection function in the quill

Machine Frame

• Rigid construction with thick-walled column and large throat (340 mm)
• Work table swivels ±45° and is height-adjustable by hand crank
• Crosswise T-slots for versatile clamping
• Table swivel and rotation simplify alignment of workpieces and fixtures
• Central coolant passage and base tank allow rotations beyond 360° and provide a precision-machined setup area

Spindle and Quill

• 12-step main drive with a 1.5 kW motor for a wide, finely segmented speed range (75–2,020 rpm)
• 3-step feed gearbox in oil bath; push-button control for quick ON/OFF of automatic feed
• Digital speed display on the control panel and large quill stroke scale with adjustable depth stop
• Thread cutting function with automatic spindle reversal at set depth
• Powerful integrated coolant pump and bright LED machine light included
• Tool ejection from the quill enables quick, tool-free tool changes

Technical Data - Working area (table)
Drilling capacity: 40 mm
Tapping capacity, steel: M24
Table set up area: 540 mm x 440 mm
Manual table travel: 550 mm
Quill stroke: 190 mm
Table swivel range (max.): ±45°
Spindle nose-to-table surface distance: 610 mm
Spindle nose-to-foot distance: 1,195 mm
Throat depth: 340 mm
Column diameter: 140 mm
Table load capacity: 150 kg

Technical Data - Headstock
Spindle mount: 4 MT
Speed range: 75 1/min - 2,020 1/min

Technical Data - Feed
Quill feeds: 0.12; 0.24; 0.4 mm/rev

Technical Data - Drive capacity
Motor rating main drive: 1.5 kW

Technical Data - Measures and weights
Overall dimensions (L x W x H): 0.95 m x 0.61 m x 2.23 m
Weight: 550 kg

Standard Equipment / Notes

• Tilting and rotatable work table with crank height adjustment
• Automatic drilling feed with electromagnetic clutch and three quill feeds
• Integrated coolant system and coolant pump
• LED work light and tool ejection in the quill
• Extensive operating tools and accessory options (thread cutting function, protective shield, LED lamp, manual, etc.)

Specifications

• Model: SSB 40 Xn
• Series: SSB Xn (universal column drilling machines)
• Drilling capacity: 40 mm (max)
• Tapping capacity (steel): M24
• Table set up area: 540 x 440 mm
• Manual table travel: 550 mm
• Quill stroke: 190 mm
• Column diameter: 140 mm
• Spindle mount: 4 MT
• Speed range: 75 - 2,020 1/min
• Main motor rating: 1.5 kW
• Quill feed rates: 0.12 / 0.24 / 0.4 mm/rev
• Table swivel: ±45°
• Table load capacity: 150 kg
• Overall dimensions: 0.95 m x 0.61 m x 2.23 m
• Weight: 550 kg
