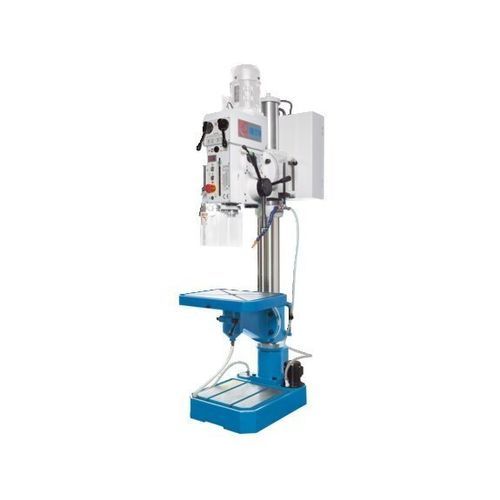

Column type drilling machine SSB 32 Xn

2-axisfor steelelectric

Product overview
The SSB 32 Xn column drilling machine is designed for workshop repair and production tasks. It features a thick-walled column, stepped spindle drive and manual gearbox for spindle and feed. The large working area and universal clamping table allow processing of small components as well as large and heavy parts.

Highlights

• Swivel table for angled drilling (±45°)
• Automatic drilling feed with three feed rates
• Work table with two rotation axes for flexible clamping
• Integrated coolant system and coolant reservoir in the base
• Digital speed display and LED work light

Machine frame

• Thick-walled column with large throat depth for extended reach
• Table height adjustable by hand crank; table swivels 45° each side
• Cross-arranged T-slots for versatile clamping
• Table swivel and rotation simplify alignment of workpieces and fixtures
• Central coolant passage permits continuous rotations beyond 360°

Spindle and quill

• 12-step main drive combined with a powerful motor for a wide speed range
• Electric components by Schneider
• Digital readout of current spindle speed on the control panel
• 3-step feed gearbox in oil bath, easy to shift
• Push-button on the cross feed handle to ON/OFF the automatic feed via electromagnetic clutch
• Quill stroke readable on large scale; depth stop for automatic feed and thread-cutting mode with automatic spindle reversal
• Toolless ejection in quill for quick tool changes
• Integrated coolant pump and LED machine light included

Technical specs (summary)
Working area:
Drilling capacity: 32 mm
Tapping capacity, steel: M 20
Table set up area: 500 mm x 420 mm
Manual table travel: 490 mm
Quill stroke: 160 mm
Table swivel range (max.): ± 45°
Spindle nose-to-table distance: 630 mm
Spindle nose-to-foot distance: 1.185 mm
Throat depth: 320 mm
Column diameter: 120 mm
Head swivel range: ± 50°
Table load capacity: 100 kg

Headstock:
Spindle mount: 4 MT
Speed range: 125 1/min - 3.030 1/min

Feed:
Quill feeds: 0.1 / 0.2 / 0.3 mm/R

Drive capacity:
Main motor rating: 1.2 kW

Measures and weights:
Overall dimensions (L x W x H): 0.84 m x 0.5 m x 1.96 m
Weight: 540 kg

Features / technical specifications

• Model: SSB 32 Xn
• Drilling capacity: 32 mm
• Tapping capacity (steel): M 20
• Table area: 500 x 420 mm, swivel ±45°
• Manual table travel: 490 mm
• Quill stroke: 160 mm, feeds 0.1 / 0.2 / 0.3 mm/R
• Spindle mount: 4 MT; speed range 125–3.030 1/min
• Main motor: 1.2 kW
• Dimensions: 0.84 x 0.5 x 1.96 m; Weight: 540 kg
