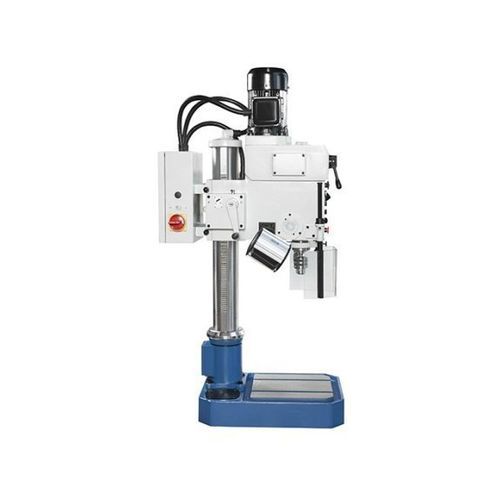

Vertical drilling machine TSB 25

benchfor steelvariable speed

Description
The TSB bench drill series delivers a compact footprint and reliable drilling performance for a wide range of workshop applications, from steel construction to repair shops. Machines are equipped with a main spindle gearbox for high torque and a wide speed range. A swiveling drill head enables angled drilling. The TSB 35 variant includes an automatic quill feed for large drilling diameters.

Highlights

• Compact table design
• Swiveling drill head for angled drilling
• Manual gearbox for high torque and wide speed range

Working area
Drilling capacity: 25 mm
Tapping capacity, steel: M 16
Foot set up area (length x width): 310 mm x 320 mm
Vertical head travel: 470 mm
Spindle nose-to-foot distance: 650 mm
Throat depth: 240 mm
Column diameter: 95 mm

Headstock
Spindle speed: 125 1/min - 2,825 1/min
Spindle mount: MT3
Quill stroke: 110 mm

Drive capacity
Motor rating main drive: 0.75 kW

Measures and weights
Overall dimensions (length x width x height): 0.7 m x 0.41 m x 1.56 m
Weight: 220 kg

Standard equipment

• Base / stand
• Safety guard
• LED work light
• Drill chuck
• Maintenance tools
• Operation manual

Technical specifications

• Model: TSB 25
• Type: Bench / column drill
• Drilling capacity (steel): 25 mm
• Tapping capacity (steel): M16
• Throat depth: 240 mm
• Spindle mount: MT3
• Quill stroke: 110 mm
• Spindle speed range: 125–2,825 1/min (6 speeds)
• Motor rating main drive: 0.75 kW
• Overall dimensions (L×W×H): 0.7 m × 0.41 m × 1.56 m
• Weight: 220 kg
