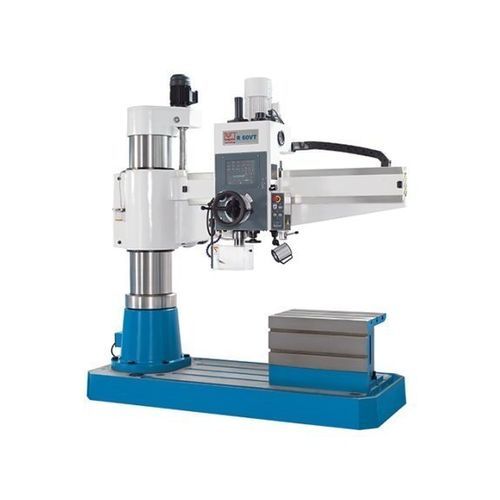

Radial drilling machine R 60 VT PRO

for steelvariable speedservo-electric

Overview
The R 60 VT PRO is a servocontrolled conventional radial drill designed for precise drilling, countersinking and thread cutting in single-part and small-batch production. Its intuitive operating concept and large touchscreen simplify parameter selection and reduce setup time. Common applications include maintenance, toolmaking and steel construction.

Highlights

• Intuitive operating concept with large touchscreen
• Advanced electronic control of machine functions
• Servo-driven quill feed with automatic return
• Rigid cast construction for high stability
• 3-year warranty on the touchscreen

Construction & Mechanical Design

• Base, column, boom and gear head in premium cast for maximum rigidity
• Oversized column and torsion-resistant boom for stable machining
• Boom height adjustment via powerful motorized drive and vertical spindle
• Boom lifting gears run in an oil bath for long service life
• Smooth swivel and travel axes to reduce operator effort
• Central lubrication system ensures consistent lubrication of the column

Control & Feed

• Electronic servo quill feed controlled from a large touchscreen display
• Drilling depth set electronically and validated by the control system
• Selectable units (mm / inch) for input and display
• Coolant system enabled from touchscreen and synchronized with main spindle
• Two gear steps with continuously variable rpm displayed on the monitor
• Servo motor provides infinitely variable quill feed; quill returns automatically at preset depth
• Thread cutting manual on base model; automatic thread cutting available as option on certain variants
• Boom height set via touchscreen icon; system releases/fixes hydraulic clamps and respects limit stops
• Drill head and column can be clamped/released together or separately
• Boom can be moved vertically without losing spindle-to-bore alignment
• Control software provides rpm and feed recommendations based on drill size
• Alarm screens warn operator of errors and show machine status

Automatic thread cutting (optional)

• Automatic thread cutting enabled at the touchscreen on equipped models
• Tap size, pitch and recommended rpm read from internal database
• Threading performed with automatic feed; spindle speed synchronized with thread leads and depth stop limits thread depth
• On reaching preset depth spindle reverses and quill returns to start position

Standard equipment & options

• Touchscreen control integrating most machine functions
• Automatic thread cutting cycle (optional on selected SKUs)
• Servo motor for quill feed
• Drilling accessories and chuck sets (options)
• Cube table
• Central lubrication (manual/centralized)
• Coolant system
• LED work light
• Height-adjustable protective screen
• User manual

Technical specifications

• Drilling capacity: 60 mm
• Drilling capacity (cast iron): 70 mm
• Tapping capacity, cast iron: M50
• Tapping capacity, steel: M45
• Maximum drilling depth: 315 mm
• Throat depth: 350 mm - 1,600 mm
• Spindle nose-to-table distance: 350 mm - 1,250 mm
• Drill head travel (horizontal): 1,250 mm
• Headstock speed range: 38 1/min - 2,000 1/min
• Spindle mount: 5 MT
• Feed range: 0 mm/min - 300 mm/min
• Main drive motor rating: 4 kW
• Lift motor: 1.5 kW
• Overall dimensions (L x W x H): 2.49 m x 1.05 m x 2.78 m
• Weight: 3,800 kg
