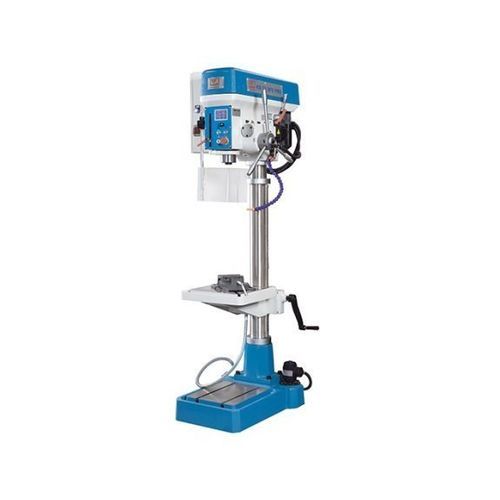

Vertical drilling machine KB 32 SFV PRO

column typeheavy-dutyM24

Description
The KB SFV Pro series column drills are the latest version of the compact, robust drill press with automatic feed. This range is suitable for single-part production and manual series production in workshops and industrial plants. The machines are engineered for precision and the stepless drive requires minimal maintenance. The control panel features a color touchscreen for easy access to functions and settings.

Key features

• Automatic feed
• Color touchscreen control
• Tapping unit with automatic reverse

Product details

• Suitable for drilling, countersinking, reaming and tapping in single-part and series production
• Base, column, table and gear head made of high-quality cast iron for stability
• Modern design with precision machining for accurate, stable operation
• Heavy, ground worktable with diagonal T-slots
• Large base plate with ground mounting surface and parallel T-slots
• Hardened and ground quill and spindle
• Spindle drive by robust, low-maintenance belt drive
• Integrated coolant system in the machine base
• Protected LED work light integrated in the head
• Electronically controlled quill feed with continuous adjustment
• Robust mechanical depth stop for automatic feed
• Tapping function: automatic spindle reverse when preset depth is reached

Working area (table)
Drilling capacity: 32 mm
Thread capacity, steel: M24
Table surface: 330 mm x 330 mm
Quill stroke: 150 mm
Column diameter: 100 mm
Overhang (swing): 245 mm
Spindle nose - base distance: 1235 mm
Spindle nose - table distance: 800 mm
Table load capacity: 50 kg

Spindle (table)
Speed range (high): 400 rpm - 2250 rpm
Speed range (low): 140 rpm - 400 rpm
Spindle taper: MT3

Feeds (table)
Quill feed: 24 mm/min - 243 mm/min

Drive power (table)
Main drive power: 3 kW
Coolant pump power: 0.04 kW

Dimensions and weight (table)
Dimensions (L x W x H): 0.9 m x 0.6 m x 1.9 m
Weight: 310 kg

Technical specifications

• Model: KB 32 SFV PRO
• Function: drilling, countersinking, reaming, tapping (single-part and series production)
• Control: color touchscreen, stepless spindle speed and feed adjustment
• Cast components for stability: base, column, table, head
• Ground table with diagonal T-slots
• Hardened and ground spindle and quill
• Belt-driven spindle for low maintenance
• Electronic automatic quill feed (24–243 mm/min)
• Spindle speed range: 140–2250 rpm (two ranges)
• Main motor power: 3 kW
• Integrated coolant system and protected LED work light
• Tapping unit with automatic reverse
• Table load: 50 kg
• Machine weight: 310 kg
