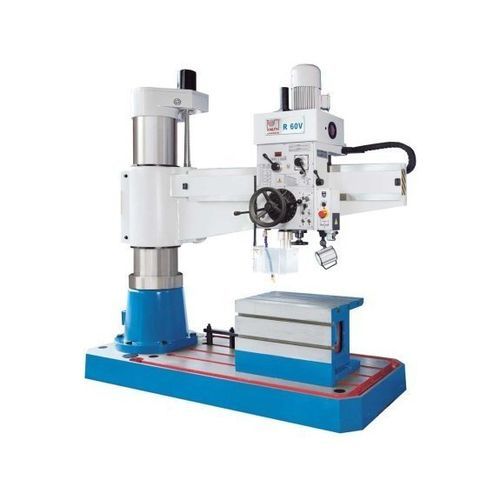

Radial drilling machine R 60 V

for steelhigh precisionvariable speed

Product overview
Range of radial drilling machines for drilling, reaming and countersinking in steel and cast iron. Designed for easy handling of large and heavy workpieces thanks to a long projection arm and robust construction. The RV series is the modern evolution of the classic radial drilling machine and a long-standing KNUTH bestseller.

Highlights

• Infinitely variable spindle speed with digital display
• Cube table for extended clamping options
• High torsional-stiff boom and large-dimension column for constant accuracy
• Motorized boom height adjustment and smooth, low-noise gear operation

Product details

• Base, column, boom and gear head made of premium quality cast
• Boom height adjustment via powerful motorized drive and lifting screw
• Boom lifting gears run in an oil bath for reliability and low wear
• Advanced column swivel with optimized clamping for high rigidity and minimal clamping offset
• Smooth swivel and travel axes to reduce operator effort
• Hardened, precision-ground chrome-nickel steel gears and oil-pump lubrication
• Main spindle on precision bearings with automatic spindle brake
• Precision-ground quill teeth for smooth feed and minimal wear; quill moves on hardened, ground guideways
• Adjustable overload clutches on feeds and adjustable drilling depth stop with large scale and vernier
• Guided counterweights on quills for easier handling and improved safety
• Independent hydraulic clamping: boom can be moved vertically without losing spindle-to-bore alignment
• Drill head and column can be clamped/released together or separately by push-button
• Central lubrication system for reliable column lubrication
• Integrated coolant system with reservoir in machine base

Standard equipment (selected)

• Coolant system
• Cube table
• LED work lamp
• Operating manual

Optional equipment (selected)

• Swivel table 400 x 600 mm (optional accessory)

Technical specifications

• Drilling capacity: 60 mm
• Tapping capacity cast iron: M 52
• Tapping capacity steel: M 40
• Max drilling depth: 315 mm
• Machine table dimensions: 2400 mm x 1000 mm x 200 mm
• Cube table dimensions: 750 mm x 500 mm x 500 mm
• Throat depth: 350 mm - 1600 mm
• Spindle nose-to-table distance: 350 mm - 1250 mm
• Arm stroke (vertical): 585 mm
• Column diameter: 350 mm
• Drill head travel (horizontal): 1250 mm
• Speed range: 38 1/min - 2000 1/min
• Spindle mount: 5 MT
• Feeds: 0.06 mm/R - 1 mm/R
• Main drive motor: 4 kW
• Stroke motor: 1.5 kW
• Overall dimensions (L x W x H): 2.49 m x 1.05 m x 2.78 m
• Weight: 3,800 kg
• SKU: 101649
