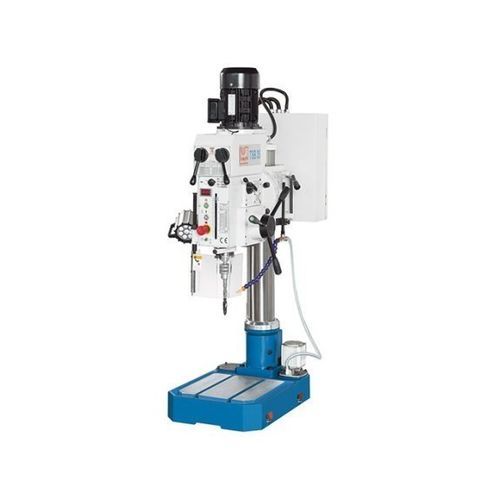

Bench drilling machine TSB 35

for steelvariable speedcompact

Description
The TSB 35 bench drill is a compact, high-performance column drilling machine designed for a wide range of workshop applications, from steel fabrication to repair shops. It features a gearbox on the main spindle for high torque and a wide speed range, a swiveling head for angled drilling and an automatic quill feed for large diameters.

Highlights

• Compact bench/column design
• Swiveling drill head for angled operations (±45°)
• Manual gearbox for high torque and broad speed range

Product Details

• Drilling capacity: 35 mm
• Throat (reach): 320 mm
• Spindle nose-to-foot distance: 645 mm
• Spindle speeds: 125 - 3030 rpm (6 or 12 steps depending on version)
• Spindle mount: MT4
• Quill stroke: 155 mm
• Automatic quill feed (3 feeds: 0.1 / 0.2 / 0.3 mm/rev)
• Rigid cast-iron construction; height-adjustable head
• Rectangular table with T-slots and circumferential coolant groove
• Digital speed (rpm) display; coolant system; tapping function

Standard equipment

• Base with storage space
• Protective shield
• Tapping/thread-cutting function
• LED work lamp
• Coolant system
• Drill chuck
• Operating tools
• Operating manual

Technical specifications (table)
Working area
Drilling capacity: 35 mm
Tapping capacity, steel: M22
Foot set-up area (L x W): 370 mm x 360 mm
Vertical head travel: 515 mm
Spindle nose-to-foot distance: 645 mm
Throat depth: 320 mm
Column diameter: 120 mm

Headstock
Spindle speed: 125 - 3030 rpm
Spindle mount: MT4
Quill stroke: 155 mm

Feed
Quill feeds: (3) 0.1 mm/rev; 0.2 mm/rev; 0.3 mm/rev

Drive capacity
Motor rating main drive: 1.2 kW

Dimensions and weight
Overall dimensions (L x W x H): 0.81 m x 0.5 m x 1.67 m
Weight: 340 kg

Characteristics / specifications

• Model: TSB 35
• Type: Bench/column drilling machine
• Drilling capacity: 35 mm
• Tapping capacity (steel): M22
• Spindle speeds: 125–3030 rpm (6 or 12 steps)
• Spindle mount: MT4
• Quill stroke: 155 mm
• Throat depth: 320 mm
• Spindle nose-to-foot distance: 645 mm
• Column diameter: 120 mm
• Vertical head travel: 515 mm
• Quill feeds: 0.1 / 0.2 / 0.3 mm/rev
• Motor rating: 1.2 kW
• Dimensions: 0.81 m x 0.5 m x 1.67 m
• Weight: 340 kg
• Standard features: automatic quill feed, coolant system, digital speed display, swiveling head ±45°
