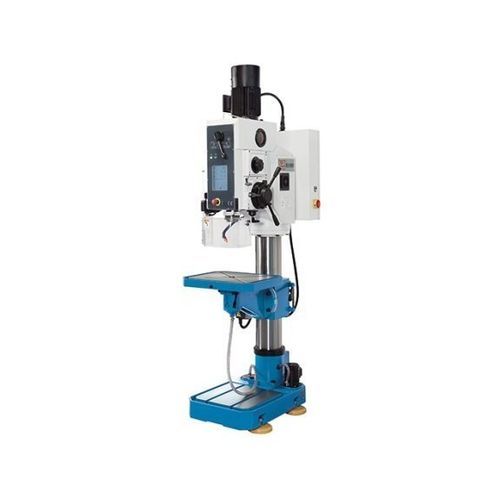

Vertical drilling machine SSB 50 F Super VT

column typerotating tablefor steel

Overview
SSB F Super VT series column drill presses are engineered for workshops handling maintenance, prototyping and small-series production. They combine an intuitive 8" touchscreen for operator guidance, stepless spindle speed control, a robust quill feed with manual transmission and a motorized table lift to simplify handling of heavy workpieces. Suitable for drilling, reaming and tapping in steel, industrial construction and maintenance applications.

Highlights

• 8" touchscreen control panel with operator support and presets
• Automatic quill feed with manual transmission
• Infinitely variable spindle speed control (inverter)
• Motorized table height adjustment for easier part handling
• Swiveling and rotating work table with diagonal chip grooves
• 3-year warranty on the touchscreen

Technical specifications (summary)
Working area

• Drilling capacity: 50 mm
• Tapping capacity (steel): M30
• Table set up area: 580 mm x 460 mm
• Quill stroke: 200 mm
• Manual table travel: 515 mm
• Powered table travel: 405 mm
• Table swivel range (max.): ± 50°
• Column diameter: 180 mm
• Spindle nose-to-table surface distance: 575 mm
• Spindle nose-to-foot distance: 1.165 mm
• Throat depth: 360 mm

Headstock

• Speed range: 50 1/min – 2.000 1/min (infinitely variable)
• Spindle mount: MT4

Feed

• Quill feeds: 0.08; 0.12; 0.17; 0.24; 0.35; 0.50 mm/rev

Drive capacity

• Main drive motor rating: 3 kW

Measures and weights

• Overall dimensions (L × W × H): 0.97 m × 0.68 m × 2.34 m
• Weight: 720 kg

Product details & features

• Very rigid construction with thick-walled column and large throat for stable machining
• Base, column, table and gear head made of premium cast iron
• Large work table with diagonal chip flutes — rotatable and tiltable
• Table height adjustment via powerful motorized drive
• Robust 8" touchscreen with intuitive operation and technological assistance
• Spindle speed controlled in two gear stages via inverter for wide speed range
• Coolant system and workplace lamp included as standard accessories
• Auxiliary gears for main spindle run in an oil bath for high reliability and low wear
• Automatic quill feed engaged via electromagnetic clutch (no power consumption for engagement)
• Manual operation allows precise drilling depth setting via capstan stop system
• Durable, splash-protected LED work light for safe, energy-efficient illumination
• Thread-cutting function included as standard
