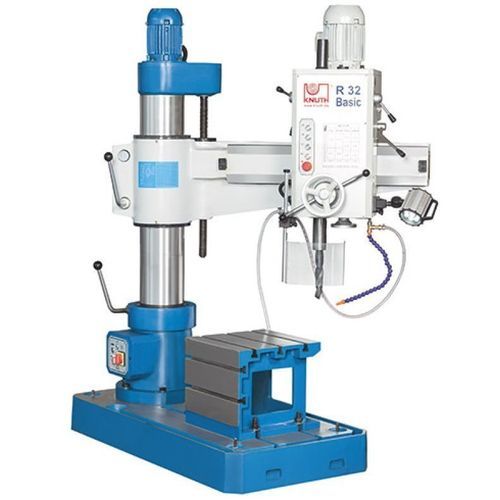

Radial drilling machine R 32 Basic

for steelheavy-dutyelectric

Overview
Entry-level radial drilling machine with 32 mm drilling capacity, 820 mm throat and 860 mm maximum spindle-to-table distance. Part of the R Basic series with manually switched gears and mechanical clamping. Heavy fine-grain cast-iron construction provides stability for workshop and steel-construction use. Cube table included as standard for small workpieces.

Highlights

• Easy positioning on all axes
• Motorized boom height adjustment
• Spindle made of hardened steel
• Mechanical clamping for head, column and arm

Working area
Drilling capacity: 32 mm
Column diameter: 200 mm
Throat depth: 320 mm - 820 mm
Spindle nose to table surface: 320 mm - 860 mm
Cube table dimensions: 400 mm x 400 mm x 350 mm
Machine table dimensions: 1,370 mm x 700 mm x 160 mm
Quill stroke: 240 mm

Headstock
Spindle mount: MT4
Speed range: 75 1/min - 1,220 1/min

Feed
Feeds: 0.1 mm/rev - 0.25 mm/rev

Drive
Main motor rating: 1.5 kW

Dimensions and weight
Overall (L x W x H): 1.41 m x 0.72 m x 1.89 m
Weight: 1,180 kg

Standard equipment

• Cube table (standard for small workpieces)
• Hand lever for quill feed control
• Rigid column base with central main switch

Applications

• Workshops, steel construction, maintenance and small-series production

Technical specifications

• Model: R 32 Basic
• Category: Radial drilling machine
• Drilling capacity: 32 mm
• Throat: 320 - 820 mm
• Spindle-to-table distance: 320 - 860 mm
• Quill stroke: 240 mm
• Spindle mount: MT4
• Speed range: 75 - 1,220 1/min
• Feeds: 0.1 - 0.25 mm/rev
• Main motor: 1.5 kW
• Overall dimensions: 1.41 m x 0.72 m x 1.89 m
• Weight: 1,180 kg
