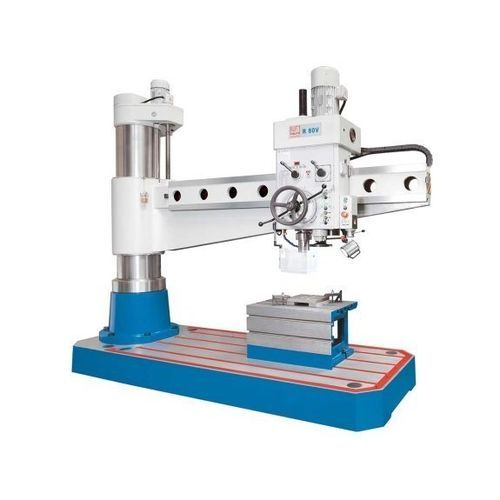

Radial drilling machine R 80 V

for steelvariable speedheavy-duty

Overview
The R 80 V radial drilling machine series is designed for versatile and powerful drilling, reaming and countersinking in steel and cast iron. With a long projection arm and robust construction, it handles large and heavy workpieces while offering flexible clamping and straightforward operation suited to production and construction environments.

Highlights

• Infinitely variable spindle speed with digital display
• Cube table for extended clamping options
• Robust cast construction ensuring sustained accuracy
• Ergonomic, modern design for easy operation

Detailed description

• Base, column, boom and gear head are manufactured from high-quality castings
• Large-dimension column and torsion-resistant boom for high rigidity
• Boom height adjusted by powerful motorized drive and vertical lift spindle
• Boom lift gears run in an oil bath for reliability and low wear
• Advanced column swivel with optimized clamping for maximum rigidity and minimal clamp offset
• Smooth swivel and travel axes to reduce operator effort in production
• Hardened, precision-ground chrome-nickel gear components for quiet, smooth operation
• All gear parts lubricated reliably via oil pump
• Main spindle on precision bearings with automatic spindle brake
• Quill teeth precision-ground for smooth feed and minimum wear
• Drill head runs on hardened and ground guideways
• Adjustable overload clutches fitted in the feeds on all models
• Adjustable boring depth stop with large, easy-to-read scale and vernier
• Controls positioned within reach for practical handling and short training time
• Powerful coolant system with reservoir integrated into the machine base
• Guided counterweights on quills for easier handling and increased safety
• Independent hydraulic clamping allows vertical boom movement without losing spindle-to-bore alignment
• Drill head and column can be clamped or released together or separately at the push of a button
• Central lubrication system ensures reliable lubrication of the column

Working area (key data)
Drilling capacity: 80 mm
Tapping capacity, cast-iron: M 60
Tapping capacity, steel: M 52
Maximum drilling depth: 400 mm
Machine table dimensions: 3,380 mm x 1,230 mm x 280 mm
Cube table dimensions: 580 mm x 850 mm x 500 mm
Throat depth: 450 mm - 2,550 mm
Spindle nose-to-table surface distance: 400 mm - 1,580 mm
Arm stroke (vertical): 800 mm
Column diameter: 450 mm

Travels
Drill head travel (horizontal): 2,100 mm

Headstock
Speed range: 30 1/min - 1,400 1/min
Spindle mount: 6 MT

Feed
Feeds: 0.06 mm/R - 1.38 mm/R

Drive capacity
Main drive motor: 7.5 kW
Stroke motor: 2.2 kW

Measures and weights
Overall dimensions (L x W x H): 3.59 m x 1.25 m x 3.53 m
Weight: 7,400 kg

Standard equipment (excerpt)

• Coolant system
• Cube table
• LED work lamp
• Operating manual

Notes
Optimised for drilling, reaming and countersinking of steel and cast iron; designed for large and heavy workpieces. Infinitely variable spindle speed with digital readout and modern drive technology ensure flexible and accurate operation.

Technical specifications

• Drilling capacity: 80 mm
• Tapping capacity (cast-iron): M 60
• Tapping capacity (steel): M 52
• Maximum drilling depth: 400 mm
• Throat depth: 450 mm - 2,550 mm
• Spindle speed range: 30 - 1,400 1/min (infinitely variable)
• Feeds: 0.06 mm/R - 1.38 mm/R
• Main motor: 7.5 kW; stroke motor: 2.2 kW
• Machine table: 3,380 mm x 1,230 mm x 280 mm
• Cube table: 580 mm x 850 mm x 500 mm
• Overall dimensions L×W×H: 3.59 m × 1.25 m × 3.53 m
• Weight: 7,400 kg
