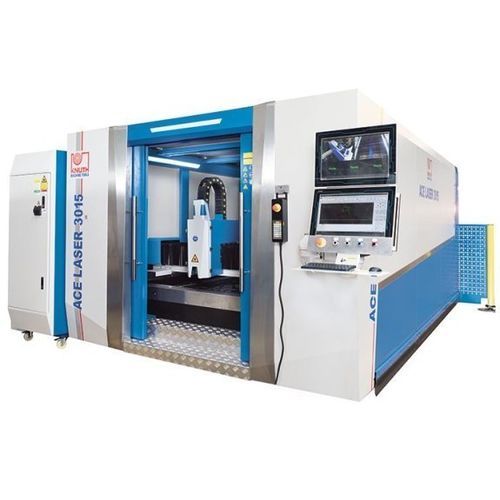

Fiber laser cutting machine ACE Laser 4020 3.0 R

for metalsheet metalCNC

Overview
The ACE Laser series provides an industrial laser cutting system optimized for plate processing from single-piece manufacturing to high-volume series production in electronics, aerospace and automotive sectors. The machine architecture and standard equipment support continuous operation, process control and reproducible part quality.

Highlights

• Gantry construction with bilateral drives and configurable working areas up to 6,000 x 2,000 mm
• Automatic shuttle table for loading/unloading during cutting to reduce downtime
• Enclosed machine body with extraction and filtration system and safety glass windows for observation
• RayTools cutting head with motorized focus, integrated collision protection and fiber beam delivery
• Raycus ytterbium fiber laser available from 1,000 to 6,000 W (3,000 W on the referenced model)
• Precision rack-and-pinion drives and servo motors for repeatable positioning

Product details

• Gantry/portal design with drives on both sides for improved dynamics and large-format plate handling
• Y-axis portal in die-cast aluminum for reduced mass and increased rigidity
• Thermal treatment of the welded machine frame to remove production stresses and maintain long-term alignment
• Low-maintenance linear guides designed for sustained precision at high cutting speeds
• High-precision rack-and-pinion gearboxes on X/Y (and Z where applicable) for stable positioning accuracy
• Standard integrated dust collector and filtration unit to support environmental and process requirements

Control & Software

• User-oriented interface with optimized controls for production use
• Technology database with pre-set cutting parameters and cycles for common metals
• CypCut/CNC control compatibility and software tools for nesting and process parameter selection
• Solenoid and proportional valves managed from the control to regulate cutting gas pressures

Cutting head

• RayTools cutting head with motorized focus position, integrated collision guard and height control
• Flexible fiber-optic beam guide for maintenance-free transmission and extended service life
• Option for high-performance heads (e.g., BOCI) on systems ≥ 6 kW

Laser sources

• Ytterbium fiber laser (Raycus) providing 1,000–6,000 W beam power; 3,000 W standard on this model
• Maintenance‑free laser source designed to reduce operating costs; higher powers available on request

Technical data

• Working area
  Table dimensions: 4.000 mm x 2.000 mm
  Max. workpiece weight: 1.500 kg
  Axis acceleration X/Y: 10 m/s² — Z: 5 m/s²
• Travels
  Travel X-axis: 2.020 mm
  Travel Y-axis: 4.050 mm
  Travel Z-axis: 100 mm
• Rapid feed
  Rapid feed: 100 m/min
  Table change time: 12 s – 17 s
• Accuracies
  Positioning accuracy: 0,03 mm/m
  Repeatability: 0,02 mm/m
• Laser
  Fiber laser: 3.000 W
  Wavelength: 1,08 ± 10% µm
  Beam power max.: 3.000 W
  Pulse frequency: 50 ~ 5k Hz
  Power consumption: 12 kW
  Supply voltage: AC 380V ± 10%, 50/60Hz, 3xL+N
  Cutting capacity (structural steel): 18 mm — (stainless steel): 8 mm — (aluminium): 6 mm
• Drive capacity
  X-axis: 1 kW — Y-axis: 1,5 kW — Z-axis: 0,4 kW
• Measures and weights
  Overall dimensions (L x W x H): 10,34 m x 4,28 m x 2,2 m
  Weight: 9.000 kg
