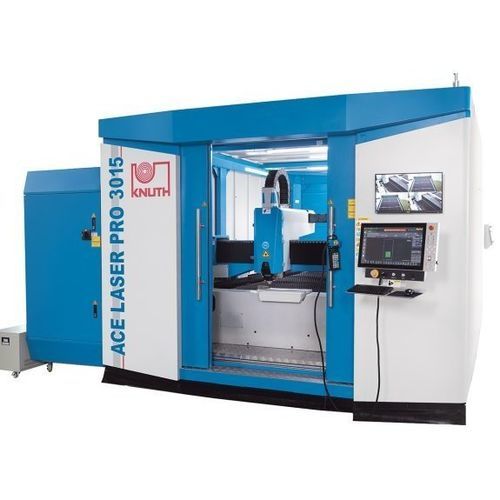

Fiber laser cutting machine ACE Laser PRO 3015 30R

for metalsheet metalCNC

Overview
The ACE Laser PRO 3015 30R is an industrial fiber laser cutting machine designed for precision cutting of metal parts in single-piece production and large series. Configured with a 3,000 × 1,500 mm table and a 30 kW fiber laser, it is intended for demanding manufacturing environments in electronics, aerospace and automotive sectors.

Highlights

• Laser power range: 12–30 kW (this model: 30 kW)
• Shuttle table with 3,000 × 1,500 mm work area and 1,500 kg max workpiece weight
• Complete cutting package including filtered vacuum extraction
• Service package available: installation, commissioning and maintenance

Control

• FSCUT8000 CNC on EtherCAT bus, developed for high-power fiber lasers (>8 kW)
• User interface with industrial cutting functions and process optimisation
• HypCut CAM for nesting, production planning and scheduling

Cutting head

• BLT 6 series smart cutting head designed for high-power applications (up to 40 kW)
• Optimized beam path and dual dust collection for stable cutting and simplified maintenance
• Smart-Piercing and Auto-Recut functions for air- and N2-assisted cutting
• Drawer-style optics for fast replacement of lens guards and lenses; lens guard monitoring included

Height control

• Capacitive height sensor with Ethernet integration: height sensing, segmented/step piercing, edge detection and vibration suppression
• Anti-collision function to reduce risk of tilt collisions during production

Laser source

• Multi-module CW fiber lasers (Raycus HP series) offering high electro-optical efficiency and reliable beam quality
• Maintenance-free design to reduce operating costs

Technical specifications
Working area
Table dimensions: 3,000 mm × 1,500 mm
Maximum workpiece weight: 1,500 kg

Travels
Travel X-axis: 1,550 mm
Travel Y-axis: 3,050 mm
Travel Z-axis: 370 mm

Rapid feed
Rapid feed X/Y: 200 m/min
Rapid feed Z: 35 m/min
Table change time (shuttle): 18–20 s

Accuracies
Positioning accuracy: 0.03 mm/m
Repeatability: 0.03 mm/m

Laser
Fiber laser power: 30,000 W
Wavelength: 1.08 ± 0.5% µm
Supply voltage: AC 380V ± 10%
Typical cutting capacities: structural steel 50 mm; stainless steel 40 mm; aluminium 30 mm

Drive capacity
Drive power X-axis: 2.9 kW
Drive power Y-axis: 1.3 kW
Drive power Z-axis: 0.75 kW

Dimensions and weight
Overall (L×W×H): 9.54 m × 3.6 m × 2.58 m
Approx. weight: 8,800 kg

Characteristics / technical data

• Model: ACE Laser PRO 3015 30R
• Standard CNC: FSCUT8000 (EtherCAT); CAM: HypCut; nesting supported
• Smart BLT6 cutting head, Smart-Piercing, Auto-Recut, capacitive height control, anti-collision
• Complete cutting package available including filtered vacuum extraction
