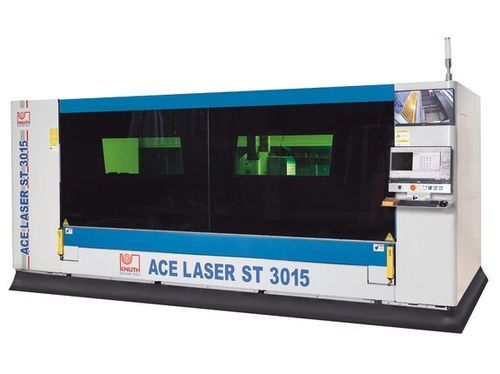

Fiber laser cutting machine ACE.ST 3015 2.0R

for aluminumfor steelfor stainless steel

Overview
The ACE.Laser ST series comprises industrial fiber laser cutting systems designed to process large metal sheets within a compact footprint. All components are validated for laser cutting and the standard configuration includes a complete cutting package with filtered vacuum exhaust. The motorised pull-out table enables fast loading and unloading while minimising required floor space. The platform suits applications from single, complex parts to high-volume series production in electronics, aerospace and automotive industries.

Highlights

• Compact industrial layout with high beam quality
• Motorised retractable cutting table for efficient material handling
• Complete cutting package with matched filter extraction
• KNUTH service: installation, commissioning and maintenance

Product Details

• Large working area 3000 x 1500 mm optimised for sheet utilisation and compact plant layout
• Pull-out table extends outside the machine enclosure for safe, fast loading/unloading
• Pull-out mechanism rated up to 1000 kg in fully extended position
• Torsionally rigid gantry driven synchronously on both sides for stable motion
• Machine meets perpendicularity and squareness tolerances for laser cutting according to DIN EN ISO 9013-1
• Heat-treated welded frame for low residual stress and long-term repeatability
• Precision linear guides and high-precision rack-and-pinion gears on X and Y for high speeds and accurate positioning
• Powerful servo drives deliver high dynamics for contour quality and productivity
• Total enclosure with safety glass observation window for operator and environmental protection
• Hand-held control included for quick setup

Control

• High-performance CNC with large display and intuitive user interface
• Centralised display of machine functions and short operator training time
• Additional monitor for loading and cutting monitoring via integrated cameras
• Remote diagnostics and maintenance access via Ethernet
• Proportional valves for gas pressure control during cutting (set via control)

Nesting Software

• CypCut nesting and cutting software supporting common formats (Ai, DXF, PLT, LXD)
• Technology database with cutting parameters and predefined cycles for different metals
• Automatic nesting to optimise material utilisation with user-adjustable settings

Cutting Head

• Up to 4 kW models equipped with RayTools cutter head; 6 kW models use BOCI BLT head
• Integrated collision protection, automatic focus positioning and height control
• Continuous focus adjustment according to material conditions during program execution
• Low-maintenance design for fast service operations

Laser Source

• Raycus fiber laser options offering high electro-optic efficiency and stable beam quality
• Maintenance-free long-life laser source to reduce operating costs
• Water cooling system for thermal stability and component protection

Vacuum exhaust

• Powerful filtered vacuum exhaust sized to the laser power
• Efficient particle and fume removal to protect operator health, product quality and machine life

Technical specifications

• Working area - Table dimensions: 3.000 mm x 1.500 mm; Max workpiece weight: 1.000 kg
• Travels - X-axis: 1.530 mm; Y-axis: 3.050 mm; Z-axis: 100 mm
• Rapid feed - X/Y: 80 m/min; Z: 40 m/min
• Accuracies - Positioning accuracy: 0,03 mm/m; Repeatability: 0,03 mm/m
• Laser - Fiber laser: 2.000 W; Beam wavelength: 1,08 ± 10% µm; Power consumption: 6,5 kW; Cutting capacity: structural steel 16 mm; stainless steel 6 mm; aluminium 5 mm
• Drive capacity - X-axis: 1,7 kW; Y-axis: 2,4 kW; Z-axis: 0,4 kW
• Dimensions & weight - Overall (L x W x H): 4,75 m x 2,26 m x 2,1 m; Weight: 5.300 kg
