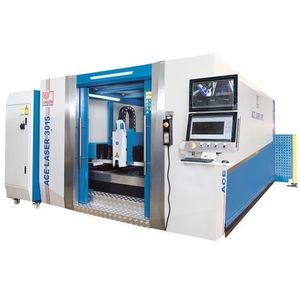

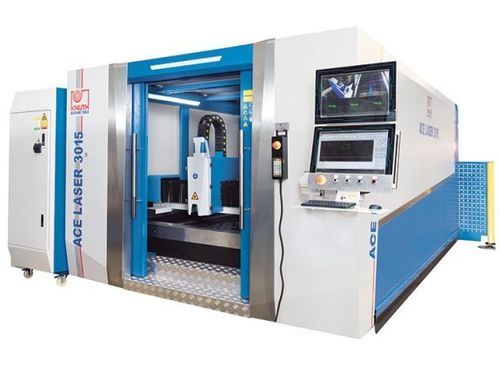

Fiber laser cutting machine ACE Laser 3015 2.0 R

for metalsheet metalCNC

Overview
The ACE Laser 3015 2.0 R is a gantry-style fiber laser cutting machine designed for industrial sheet processing. It combines a 3000 × 1500 mm working area with a 2 000 W fiber laser source to handle single-piece production and medium-series manufacturing across electronics, aerospace and automotive applications.

Highlights

• Gantry construction with bilateral drives for stable motion
• Automatic shuttle table for loading/unloading during cutting
• Integrated filtration/extraction system and protective enclosure

Working area
Table dimensions: 3.000 mm x 1.500 mm
Maximum workpiece weight: 1.000 kg
Axis acceleration X / Y: 10 m/s² — Z: 5 m/s²

Travels
Travel X-axis: 1.520 mm
Travel Y-axis: 3.050 mm
Travel Z-axis: 100 mm

Rapid feed
Rapid feed: 100 m/min
Change time at cutting table: 10 s – 15 s

Accuracies
Positioning accuracy: 0,03 mm/m
Repeatability: 0,02 mm/m

Laser
Fiber laser nominal power: 2.000 W
Wavelength: 1,08 ± 10% µm
Pulse frequency: 50 ~ 5k Hz
Power consumption: 6,5 kW
Supply voltage: AC 380V ± 10%, 50/60Hz, 3xL+N
Cutting capacity (typ.): structural steel 16 mm, stainless steel 6 mm, aluminum 5 mm

Drive capacity
X-axis drive: 1 kW
Y-axis drive: 1,5 kW
Z-axis drive: 0,4 kW

Dimensions and weight
Overall dimensions (L × W × H): 9,8 m × 3,7 m × 2,15 m
Weight: 8.000 kg

Product details

• Gantry design with drives on both sides and a working area accommodating standard plate sizes (3000×1500 mm; variants up to 6000×2000 mm)
• Y-axis portal in aluminum die-cast for reduced mass and high rigidity
• Thermally treated welded frame to eliminate internal stresses and maintain long-term accuracy
• Precision linear guides and high-precision rack-and-pinion gears for reliable positioning at high speeds
• Servo drives on all axes and a RayTools cutting head with motorized focus and collision protection
• Automatic shuttle table reduces production downtime by allowing load/unload during cutting

Control & Software

• User-friendly CNC interface with technology database of cutting parameters
• CypCut nesting/cutting software support; common file formats supported
• Gas pressure regulation via solenoid and proportional valves controlled from the CNC

Cutting head

• RayTools cutting head with motorized focus adjustment, integrated collision guard and height control
• Fiber beam guide via flexible optical cable for low maintenance
• For higher-power systems (≥ 6 kW) alternative high-performance heads (e.g. BOCI) are available

Laser sources

• Ytterbium fiber lasers (Raycus) available from 1.000 to 6.000 W depending on configuration
• Maintenance-free source reduces operating costs

Technical specifications

• Working area: 3.000 x 1.500 mm
• Table travel (X × Y × Z): 1.520 mm × 3.050 mm × 100 mm
• Rapid feed: 100 m/min
• Axis acceleration: X/Y 10 m/s², Z 5 m/s²
• Positioning accuracy: 0,03 mm/m — Repeatability: 0,02 mm/m
• Laser power (fiber): 2.000 W (typical)
• Cutting capacities: structural steel 16 mm; stainless steel 6 mm; aluminum 5 mm
• Power consumption: 6,5 kW — Supply voltage: AC 380V ±10%, 50/60Hz, 3xL+N
• Overall dimensions: 9,8 m × 3,7 m × 2,15 m — Weight: 8.000 kg
• Standard features: protective housing, automatic shuttle table, extraction/filtration unit, RayTools cutting head with autofocus, CypCut/FSCUT2000 CNC
