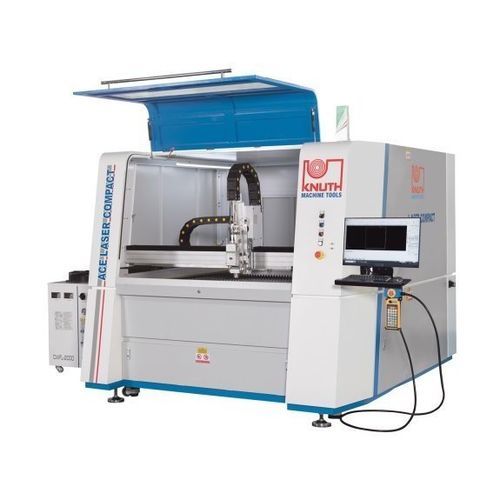

Fiber laser cutting machine ACE Laser Compact 1313 2.0 R

for metalsheet metalCNC

Description
The ACE Laser Compact 1313 2.0 R is a compact industrial laser cutting machine designed for efficient sheet-metal processing in small to medium workshops. Combining a rigid machine frame, servo-driven gantry and Raycus fiber laser source, it delivers precise cutting results while minimizing footprint and maintenance effort.

Highlights

• Compact footprint for space-constrained production
• Built-in nesting and cutting software (CypCut)
• Raycus fiber laser source with high electro-optical efficiency
• RayTools cutting head with auto-focus and collision protection

Product Details

• Rigid welded steel frame to eliminate production-related stress
• Aluminum die-cast gantry with bilateral servo drives for high dynamics
• Linear guides on all axes for long-lasting precision and low maintenance
• Preloaded ball screw drives for improved positioning accuracy
• Fully enclosed cutting system with safety glass window for process monitoring

Control and Software

• PC-based control with application-specific user interface
• Technology database with cutting parameters and preset cycles for various metals
• User-friendly parameter selection and job management
• Solenoid and proportional valves for controlled gas pressures during cutting

Nesting Software

• CypCut provides contour machining functions and status display
• Automatic nesting to reduce material waste and save operator time
• Predefined nesting patterns for common applications

Cutting Head

• RayTools cutting head with integrated collision guard, autofocus and height control
• Focus lenses adjust automatically within ±10 mm (25 mm range) with 0.05 mm accuracy
• Continuous beam-focus compensation during program execution
• Drawer-type lens holder for quick replacement of protective lenses

Laser Sources & Beam Guide

• Equipped with Raycus fiber laser sources known for reliability and efficiency
• Low-maintenance beam delivery via flexible fiber optic cable

Technical specifications

• Working area — Table size (L x W): 1,300 mm x 1,300 mm
• Working area — Maximum workpiece weight: 250 kg
• Working area — Axis acceleration X / Y: 5 m/s²
• Travels — Travel X-axis: 1,320 mm
• Travels — Travel Y-axis: 1,320 mm
• Travels — Travel Z-axis: 80 mm
• Rapid feed — Rapid feed: 40 m/min
• Accuracies — Positioning accuracy X / Y: ± 0.03 mm
• Accuracies — Repeatability X / Y: ± 0.02 mm
• Laser — Fiber laser power: 2,000 W (Raycus)
• Laser — Wavelength: 1.08 ± 10% µm
• Laser — Power consumption: 7 kW
• Laser — Cutting capacity (structural steel): 16 mm
• Laser — Cutting capacity (stainless steel): 6 mm
• Laser — Cutting capacity (aluminum): 5 mm
• Measures & weights — Overall dimensions (L x W x H): 2.52 m x 2.17 m x 1.88 m
• Measures & weights — Weight: 2,040 kg
• Model: ACE Laser Compact 1313 2.0 R
