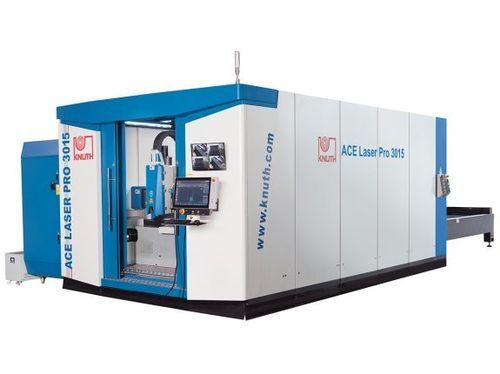

Laser cutting machine ACE Laser PRO 6025 30R

for metalsheet metalCNC

Overview
ACE Laser PRO series fiber laser cutting systems are engineered to deliver industrial laser cutting for both single-piece complex parts and large-scale series production. Designed for high-power operation and heavy workpieces, the ACE Laser PRO 6025 30R combines a 30 kW fiber laser with a 6,000 x 2,500 mm work area and automated material handling to maximise throughput and process stability.

Highlights

• High cutting power: configuration with 30 kW fiber laser (options 12–40 kW)
• Shuttle (automatic changer) table to minimise downtime
• Complete cutting package including filtered vacuum extraction
• FSCUT8000 EtherCAT CNC and HypCut production software

Working area & dynamics

• Table dimensions: 6,000 x 2,500 mm (configurable)
• Max workpiece weight on table: 5,000 kg
• Axis accelerations X/Y/Z: 15 m/s²
• Rapid feed X/Y: 180 m/min; Z rapid: 35 m/min

Travels & accuracies

• Travel X: 6,350 mm; Y: 2,550 mm; Z: 370 mm
• Positioning accuracy / repeatability: 0.03 mm/m
• Change time at cutting table: 23–25 s (shuttle table)

Laser & cutting capacities

• Fiber laser (Raycus HP series): 30,000 W (options 4–40 kW)
• Wavelength: 1.08 ± 0.5% µm
• Supply voltage: AC 380V ± 10%
• Example cutting capacities: structural steel 50 mm, stainless steel 40 mm, aluminium 30 mm

Drive & machine dimensions

• Drive power X / Y / Z: 2.9 kW / 1.3 kW / 0.75 kW
• Overall dimensions (L x W x H): 16.12 m x 4.55 m x 2.61 m
• Machine weight: approx. 13,500 kg

Machine design & features

• Thermally treated welded machine frame for low internal stress and long-term repeatability
• Precision linear guides and high-precision rack-and-pinion drives on X/Y for reliable positioning at high speeds
• Enclosed cutting area with safety glass window for operator observation
• Filtered vacuum extraction / dust collector included in standard scope

Control & software

• FSCUT8000 CNC (EtherCAT) developed for high-power fiber lasers (>8 kW)
• User-focused interface with advanced functions for process control
• HypCut software for nesting, production planning and scheduling

Cutting head & intelligent functions

• BLT 6 series smart cutting heads for high-power applications (up to 40 kW)
• Optimised beam path, improved optics and dual dust collection for stable performance and easy maintenance
• Smart-Piercing and Auto-Recut with real-time sensor for detection and automatic re-cut of uncut sections
• Drawer-type optics module for fast replacement of lens guards and lenses

Height control & safety

• Capacitive height sensing integrated in FSCUT: height detection, segmented/stepped pierce, edge finding and vibration suppression
• Anti-collision function to prevent tilt collisions during production

Technical specifications — summary

• Series: ACE Laser PRO
• Model: 6025 30R
• Work area (example): 6,000 x 2,500 mm
• Laser power (example): 30 kW fiber laser
• Travels X / Y / Z: 6,350 / 2,550 / 370 mm
• Rapid feed X/Y / Z: 180 m/min / 35 m/min
• Positioning accuracy / repeatability: 0.03 mm/m
• Cutting capacities (indicative): steel 50 mm / stainless 40 mm / aluminium 30 mm
