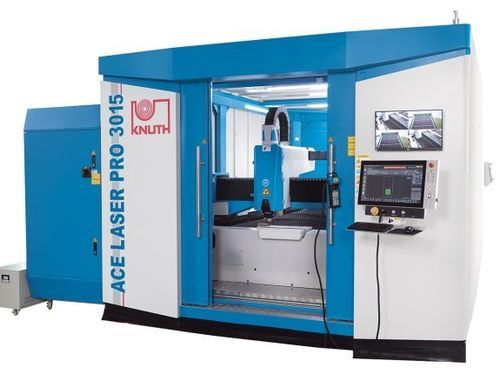

Fiber laser cutting machine ACE Laser PRO 3015 20R

for metalsheet metalCNC

Overview
The ACE Laser PRO 3015 20R is a fiber laser cutting machine engineered for industrial sheet processing. Designed for high-power applications, it delivers precise cutting for single-piece production and large serial runs in sectors such as metal fabrication, automotive, electronics and aerospace.

Highlights

• 20 kW fiber laser source (model configuration)
• Working table 3,000 × 1,500 mm, max workpiece 1,500 kg
• FSCUT8000 CNC with EtherCAT bus and HypCut production software
• BLT 6 series cutting head with Auto-Recut and Smart-Piercing

Work area
Table dimensions: 3.000 mm × 1.500 mm
Max workpiece weight: 1.500 kg
Axis acceleration X/Y: 15 m/s²
Axis acceleration Z: 15 m/s²

Travels
Travel X-axis: 1.550 mm
Travel Y-axis: 3.050 mm
Travel Z-axis: 370 mm

Rapid feed
Rapid feed X/Y-axis: 200 m/min
Rapid feed Z-axis: 35 m/min
Table change time: 18 s – 20 s

Accuracies
Positioning accuracy: 0,03 mm/m
Repeatability: 0,03 mm/m

Laser
Fiber laser nominal power: 20.000 W
Wavelength: 1,08 ± 0,5% µm
Beam power max.: 20.000 W
Supply voltage: AC 380V ± 10%
Cutting capacity (reference): structural steel 40 mm; stainless steel 30 mm; aluminium 25 mm

Drive capacity
Drive power X-axis: 2,9 kW
Drive power Y-axis: 1,3 kW
Drive power Z-axis: 0,75 kW

Dimensions and weight
Overall dimensions (L × W × H): 9,54 m × 3,6 m × 2,58 m
Weight: 8.800 kg

Control

• FSCUT8000 CNC based on modern EtherCAT bus, developed for >8 kW fiber lasers
• User-friendly interface with advanced functions for high-power cutting
• HypCut: CAD/CAM and production scheduling software for process planning and optimization

Cutting head

• BLT 6 series smart cutting heads for high-power applications (up to 40 kW)
• Optimized beam path and lenses with dual dust protection for stable performance
• Smart-Piercing and Auto-Recut: real-time pierce monitoring and automatic re-cut of uncut sections
• Drawer-type design for fast replacement of lens guards and lenses with contamination monitoring

Height control

• Capacitive height sensing included
• Functions: height detection, segmented plunge cutting, edge detection, vibration suppression via Ethernet
• Anti-collision function to prevent tilt collisions

Laser source

• Raycus HP series CW multi-module fiber lasers (configuration: 20 kW)
• High electro-optical efficiency and beam quality, maintenance-free source to reduce operating costs

Technical specifications

• Model: ACE Laser PRO 3015 20R
• Working table: 3.000 × 1.500 mm
• Max workpiece weight: 1.500 kg
• Travels X / Y / Z: 1.550 mm / 3.050 mm / 370 mm
• Rapid feed X/Y: 200 m/min; Z rapid: 35 m/min
• Axis acceleration X/Y/Z: 15 m/s²
• Positioning accuracy / repeatability: 0,03 mm/m
• Laser: fiber 20.000 W (beam power max. 20.000 W)
• Cutting capacities: structural steel 40 mm; stainless steel 30 mm; aluminium 25 mm
• Supply voltage: AC 380V ± 10%
• Drive capacities X/Y/Z: 2,9 kW / 1,3 kW / 0,75 kW
• Dimensions (L × W × H): 9,54 m × 3,6 m × 2,58 m
• Weight: 8.800 kg
