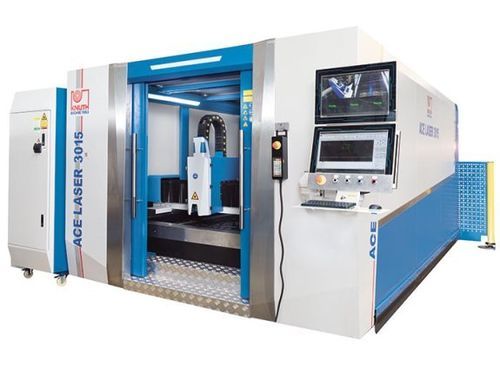

Fiber laser cutting machine ACE Laser 3015 4.0 R

for metalsheet metalCNC

Overview
The ACE Laser 3015 4.0 R is a gantry-style fiber laser cutting machine designed for industrial production. With a 3,000 x 1,500 mm working area and a 4,000 W fiber laser source, it is suitable for single-part jobs as well as series production across electronics, aerospace and automotive sectors.

Highlights

• Gantry construction with bilateral drives and large table formats (standard 3 000 x 1 500 mm; options up to 6 000 x 2 000 mm)
• Automatic shuttle table system for loading/unloading during cutting
• Complete cutting package including extraction/filter unit and gas console

Technical specifications
Working area
Table dimensions: 3.000 mm x 1.500 mm
Maximum workpiece weight: 1.000 kg
Axis acceleration X / Y: 10 m/s²
Axis acceleration Z: 5 m/s²

Travels
Travel X-axis: 1.520 mm
Travel Y-axis: 3.050 mm
Travel Z-axis: 100 mm

Rapid feed
Rapid feed: 100 m/min
Table change time: 10 s - 15 s

Accuracies
Positioning accuracy: 0,03 mm/m
Repeatability: 0,02 mm/m

Laser
Fiber laser power: 4.000 W
Wavelength: 1,08 ± 10% µm
Pulse frequency: 50 ~ 5.000 Hz
Power consumption: 16 kW
Supply voltage: AC 380V ± 10%, 50/60Hz, 3xL+N
Cutting capacities (examples): structural steel 20 mm; stainless steel 12 mm; aluminum 8 mm

Drive capacity
X-axis drive: 1 kW
Y-axis drive: 1,5 kW
Z-axis drive: 0,4 kW

Dimensions & weight
Overall dimensions (L x W x H): 9,8 m x 3,7 m x 2,15 m
Machine weight: 8.000 kg

Product details

• Gantry portal with aluminum die-cast Y-axis for high dynamics and rigidity
• Welded, thermally treated frame to minimise residual stresses and ensure long-term accuracy
• Precision linear guides and high-precision rack-and-pinion drives on Y/Z axes
• Servo drives on all axes for dynamic positioning
• Enclosed machine housing with viewing windows and safety interlocks
• Automatic shuttle/change table to reduce production downtimes
• Perpendicularity/squareness tolerances in accordance with DIN EN ISO 9013-1

Controls & Software

• CNC control FSCUT2000 with large display and user-optimised interface
• CypCut CAD/CAM and nesting software — supports Ai/DXF/PLT/LXD, material library, automatic nesting
• Technology database with preset cutting parameters and selectable cycles
• Gas pressure control via solenoid and proportional valves (set through control)
• Remote access and camera monitoring options

Cutting head

• RayTools cutting head with motorised autofocus, collision protection and height control
• Maintenance-free beam delivery via flexible fiber optic cable
• Alternative high-power heads (e.g. BOCI) available for powers ≥ 6 kW

Laser sources

• Ytterbium fiber lasers (Raycus) available from 1.000 to 6.000 W; 4.000 W standard for this model
• Low-maintenance laser source to reduce operating costs

Standard equipment

• Complete CNC system (FSCUT2000), remote controller, camera visualization, remote access
• CypCut CAD/CAM nesting and cutting software
• High-pressure cutting head with automatic focus (RayTools)
• Protective housing with interlocked front doors and viewing windows
• Automatic shuttle table system
• Filtration / dust collection unit and central lubrication
• Recirculating water chiller for laser cooling
• Automatic gas console with electrovalves for O2 and N2
• Operating manual

Optional equipment

• Compressed air dryers (refrigerated), gas pressure reducers and additional gas accessories
• Consumable starter kits for cutting different materials

Technical characteristics / summary

• Working area: 3.000 x 1.500 mm
• Max. workpiece weight: 1.000 kg
• Laser power (fiber): 4.000 W
• Cutting capacity: structural steel 20 mm; stainless steel 12 mm; aluminium 8 mm
• Rapid feed: 100 m/min
• Positioning accuracy: 0,03 mm/m; Repeatability: 0,02 mm/m
• Overall dimensions: 9,8 m x 3,7 m x 2,15 m; Weight: 8.000 kg
• Power supply: AC 380V ±10%, 50/60Hz, 3xL+N; Power consumption: 16 kW
