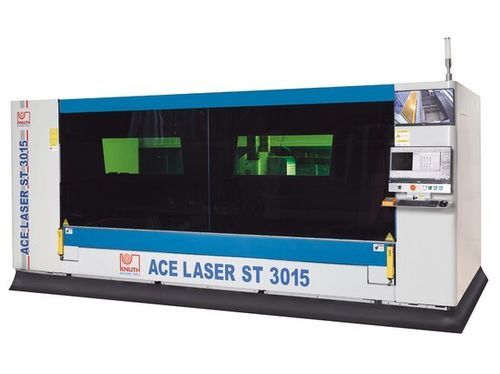

Fiber laser cutting machine ACE.ST 3015 1.5R

for metalsheet metalCNC

Product overview
The ACE.Laser ST 3015 1.5R is a compact industrial fiber laser cutting machine designed for efficient processing of large metal sheets in limited floor space. The machine is delivered with a complete cutting package including filtered vacuum exhaust and a motorised pull-out work table for fast loading and unloading. It is suitable for single-part production as well as high-volume series in demanding sectors such as electronics, aerospace and automotive.

Highlights

• Compact footprint with excellent beam quality
• Motorised retractable cutting table for easy loading/unloading
• Complete cutting package with filter extraction
• Comprehensive service: installation, commissioning and maintenance

Working area
Table dimensions: 3000 mm x 1500 mm
Workpiece weight (max.): 1000 kg

Travels
Travel X-axis: 1530 mm
Travel Y-axis: 3050 mm
Travel Z-axis: 100 mm

Rapid feed
Rapid feed X/Y-axis: 80 m/min
Z-axis rapid feed: 40 m/min

Accuracies
Positioning accuracy: 0.03 mm/m
Repeatability: 0.03 mm/m

Laser
Fiber laser (this configuration): 1500 W
Wavelength: 1.08 ± 10% µm
Beam power max.: 1500 W
Power consumption: 5.3 kW
Cutting capacity (structural steel): 12 mm
Cutting capacity (stainless steel): 4 mm
Cutting capacity (aluminum): 3 mm

Drive capacity
Machine drive capacity X-axis: 1.7 kW
Machine drive capacity Y-axis: 2.4 kW
Machine drive capacity Z-axis: 0.4 kW

Measures and weights
Overall dimensions (L x W x H): 4.75 m x 2.26 m x 2.10 m
Weight: 5250 kg

Product details

• Large 3000 x 1500 mm work area; series available with fiber laser sources from 1.5 kW up to 6 kW.
• Work table can be pulled out from the machine enclosure for fast, space-efficient loading and unloading.
• Heavy-duty pull-out mechanism supports up to 1000 kg when fully extended.
• Torsionally rigid gantry spans the long side of the table and is driven synchronously on both sides.
• Machine meets perpendicularity and squareness tolerances for laser cutting according to DIN EN ISO 9013-1.
• Welded machine frame is heat treated to ensure tension-free construction and long-term repeatability.
• Precision linear guides are low-maintenance and designed for long-lasting accuracy and high cutting speeds.
• High-precision rack-and-pinion gears on X and Y axes provide reliable positioning accuracy.
• Powerful servo drives deliver high dynamics and precise implementation of cutting parameters for superior cut quality and productivity.
• Fully enclosed cutting area with safety glass window for safe observation of the process.
• Hand-held control device included for quick setup and manual operations.

Control

• High-performance CNC with large display and intuitive user interface.
• Centralized display of machine functions to minimize operator training time.
• Additional monitor for monitoring loading and cutting via integrated cameras.
• Remote access for diagnostics and maintenance via Ethernet interface.
• Proportional valves regulate gas pressures (set via control) during cutting.

Nesting Software

• CypCut nesting and cutting software supports common formats (Ai, DXF, PLT, LXD).
• Technology database includes cutting parameters and predefined cycles for various metals.
• Automatic nesting saves time, allows custom adjustments and improves material utilisation.

Cutting head

• Models up to 4 kW are equipped with RayTools cutting heads; 6 kW models use the BOCI BLT head.
• Integrated collision protection, automatic focus positioning and height control.
• Continuous focus adjustment based on material conditions during program execution.
• Low-maintenance design for quick servicing.

Laser source

• Raycus fiber lasers offer high electro-optic efficiency, excellent beam quality and wide modulation range.
• Maintenance-free laser source reduces operating costs.
• Water cooling maintains optimum temperature balance and protects thermally exposed components.

Vacuum exhaust

• Powerful filtered vacuum exhaust matched to laser source power is included.
• Efficient filtration removes particles and fumes to protect operator health and extend machine life.

Technical specifications

• Table dimensions: 3000 mm x 1500 mm
• Workpiece weight (max.): 1000 kg
• Travel X: 1530 mm
• Travel Y: 3050 mm
• Travel Z: 100 mm
• Rapid feed X/Y: 80 m/min
• Z-axis rapid feed: 40 m/min
• Positioning accuracy: 0.03 mm/m
• Repeatability: 0.03 mm/m
• Fiber laser power (this SKU): 1500 W (up to 6000 W available in series)
• Beam power max.: 1500 W
• Power consumption: 5.3 kW
• Cutting capacity (structural steel): 12 mm
• Cutting capacity (stainless steel): 4 mm
• Cutting capacity (aluminium): 3 mm
• Machine overall dimensions: 4.75 m x 2.26 m x 2.10 m
• Machine weight: 5250 kg
• Drive capacities: X 1.7 kW / Y 2.4 kW / Z 0.4 kW
