Fiber laser cutting machine ACE.ST 3015 3.0R

for metalsheet metalCNC

Product overview

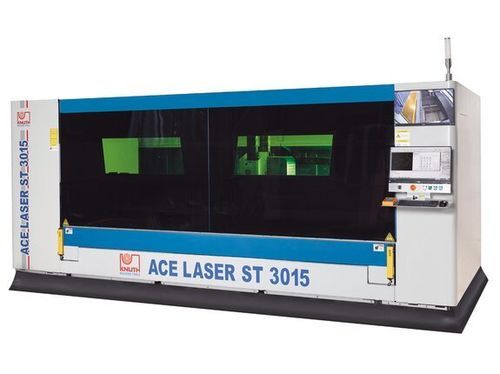

The ACE.Laser ST 3015 3.0R is a compact industrial laser cutting machine for processing large metal sheets with a 3000×1500 mm work area and a 3,000 W fiber laser source. The unit is supplied with a filtered vacuum exhaust and a motorised pull-out table for efficient loading and unloading.

Highlights

• 3000×1500 mm work area; fiber laser power configurable
• Motorised retractable table for fast loading/unloading
• Complete cutting package with filtered vacuum extraction
• Installation, commissioning and service support

Working area
Table dimensions: 3000 mm x 1500 mm; Max. workpiece weight (pull-out table): 1,000 kg

Travels
Travel X-axis: 1,530 mm; Travel Y-axis: 3,050 mm; Travel Z-axis: 100 mm

Rapid feed
Rapid feed X/Y-axis: 80 m/min; Z-axis rapid feed: 40 m/min

Accuracies
Positioning accuracy: 0.03 mm/m; Repeatability: 0.03 mm/m

Laser
Fiber laser nominal: 3,000 W; Wavelength ~1.08 µm; Max beam power: 3,000 W; Power consumption: 6.5 kW; Typical cutting capacities: structural steel 18 mm, stainless steel 8 mm, aluminum 6 mm

Drive capacity
X-axis drive: 1.7 kW; Y-axis drive: 2.4 kW; Z-axis drive: 0.4 kW

Dimensions and weight
Overall dimensions (L×W×H): 4.75 m x 2.26 m x 2.1 m; Weight: 5,300 kg

Product details

• Pull-out work table mounted on heavy-duty mechanism; supports up to 1,000 kg when extended
• Torsionally rigid gantry driven synchronously on both sides
• Heat-treated welded frame to remove manufacturing stresses and ensure long-term repeatability
• Precision linear guides and rack-and-pinion drives for low maintenance and accurate positioning
• Enclosed cutting area with safety glass window and hand-held control for setup

Control

• High-performance CNC with large display and intuitive UI
• Centralised display of machine functions and short training time
• Additional monitor and integrated cameras for process monitoring; Ethernet remote access for diagnostics
• Proportional valves for regulated cutting gas pressure

Nesting Software

• CypCut nesting and cutting software supporting Ai, DXF, PLT, LXD
• Technology database with predefined cutting parameters and cycles
• Automatic nesting for material optimisation and time savings

Cutting head

• Up to 4 kW: RayTools cutting head; 6 kW models: BOCI BLT
• Integrated collision protection, automatic focus positioning and height control
• Continuous focus adjustment during program execution

Laser source

• Raycus fiber lasers with high electro-optic efficiency and good beam quality
• Maintenance-free design and water cooling for thermal stability

Vacuum exhaust

• Filtered vacuum exhaust sized to laser power
• Efficient particle and fume removal to protect operators and product quality

Standard equipment

• Complete CNC system (FSCUT2000) with remote controller and 2 cameras
• CypCut nesting and cutting software
• Autofocus cutting head (model dependent), extraction system and recirculating water cooling
• Operating manual

Optional equipment

• Refrigerated compressed air dryers, oxygen/nitrogen pressure reducers, additional extraction options

Technical specifications

• Model: ACE.Laser ST 3015 3.0R
• Work area: 3000×1500 mm
• Max. workpiece weight: 1,000 kg
• Travels (X / Y / Z): 1,530 / 3,050 / 100 mm
• Rapid feed X/Y: 80 m/min; Z: 40 m/min
• Positioning accuracy / Repeatability: 0.03 mm/m
• Laser: Fiber 3,000 W; Power consumption: 6.5 kW
• Cutting capacities (examples): structural steel 18 mm; stainless steel 8 mm; aluminium 6 mm
• Overall dims (L×W×H): 4.75 m x 2.26 m x 2.1 m; Weight: 5,300 kg
