Fiber laser cutting machine ACE Laser 3015 6.0 R

for metalsheet metalCNC

Overview

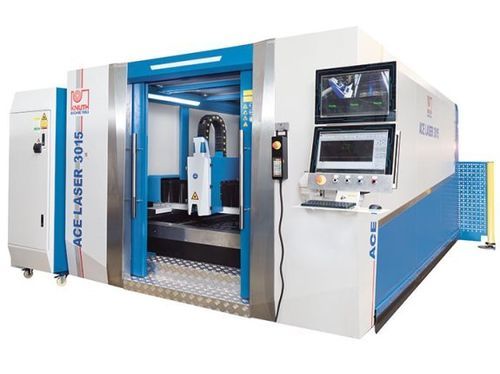

The ACE Laser 3015 6.0 R is a gantry-style fiber laser cutting machine designed for industrial plate processing. With a 3,000 × 1,500 mm working area and a 6 kW Ytterbium fiber laser, it supports single-piece production and high-volume series with stable cut quality and repeatable positioning.

Highlights

• Gantry construction with bilateral drives for large-format sheets
• Automatic shuttle table for loading/unloading during cutting
• Integrated dust collector and automated gas console

Construction & Working area

• Welded, thermally stress-relieved frame for long-term geometric stability
• Y-axis die-cast aluminum portal combining low mass and high rigidity for improved dynamics
• Precision linear guides and high-quality rack-and-pinion drives on X/Y/Z for accurate positioning
• Powerful servo drives on all axes for high acceleration and cutting speeds
• Protected machine housing with safety glass windows for operator observation

Control & Software

• User-friendly CNC interface with technology database and preset cycles
• CypCut CAD/CAM and nesting support (common formats: Ai, DXF, PLT, LXD)
• Remote access capabilities for diagnostics and maintenance
• Solenoid and proportional valves controlled by CNC for gas regulation

Cutting Head

• RayTools cutting head with motorized focus adjustment, integrated collision protection and height control
• Maintenance-free beam guidance via flexible fiberoptic cable
• Optional BOCI head for high-performance configurations (≥ 6 kW)

Laser Source

• Ytterbium fiber laser (Raycus) — 6,000 W standard; maintenance-free design for reduced operating cost
• Higher laser powers available on request

Standard Equipment

• Machine housing with interlocked front doors and protective glass
• Automatic shuttle table system with safety interlocks
• Dust collector and filtration unit included
• Central lubrication system and recirculating water chiller
• Automatic gas console for oxygen and nitrogen with CNC-controlled valves

Technical specifications

• Model: ACE Laser 3015 6.0 R
• Working area (table): 3,000 × 1,500 mm — Max. workpiece weight: 1,000 kg
• Axis accelerations: X/Y 10 m/s²; Z 5 m/s²
• Travels: X 1,520 mm; Y 3,050 mm; Z 100 mm
• Rapid feed: 100 m/min — Table change time: 10–15 s
• Positioning accuracy: 0.03 mm/m — Repeatability: 0.02 mm/m
• Laser: fiber 6,000 W; wavelength ≈ 1.08 µm; pulse freq. 50–20,000 Hz
• Power consumption: 20 kW — Supply: AC 380V ±10%, 50/60 Hz, 3xL+N
• Typical cutting capacities: structural steel 22 mm; stainless steel 14 mm; aluminum 12 mm
• Drive powers: X 1 kW; Y 1.5 kW; Z 0.4 kW
• Overall dimensions (L×W×H): 9.8 m × 3.7 m × 2.15 m — Weight approx. 8,000 kg
