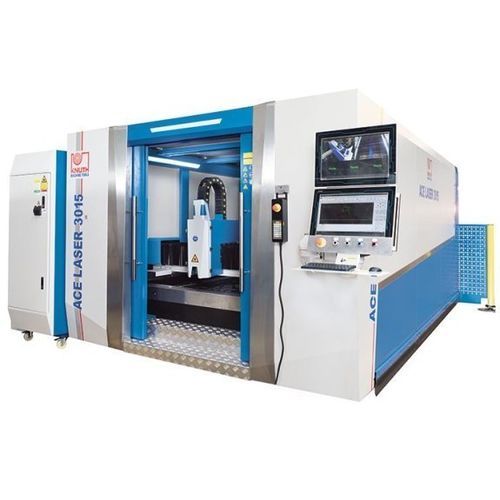

Laser cutting machine ACE Laser 6020 2.0 R

for metalsheet metalCNC

Product description
The ACE Laser series machines provide a fiber laser cutting system designed for industrial cutting tasks. Optimized for the cutting process, they deliver consistent part quality, productivity, operational safety and reliability. A comprehensive standard configuration, including an automatic shuttle table and filter extraction, supports production from single-piece (lot size 1) to large-series manufacturing in electronics, aerospace and automotive sectors.

Highlights

• Gantry construction with dual-side drives and working areas up to 6,000 x 2,000 mm
• Complete cutting package including filter extraction and automatic shuttle table
• KNUTH service options: installation, commissioning and maintenance

Technical specs — Working area
Table dimensions: 6.000 mm x 2.000 mm
Workpiece weight (max.): 2.000 kg
Axis acceleration X/Y: 8 m/s²
Axis acceleration Z: 5 m/s²

Technical specs — Travels
Travel X-axis: 2.020 mm
Travel Y-axis: 6.050 mm
Travel Z-axis: 120 mm

Technical specs — Rapid feed
Rapid feed: 80 m/min
Change time at cutting table: 15 s - 20 s

Technical specs — Accuracies
Positioning accuracy: 0.05 mm/m
Repeatability: 0.03 mm/m

Technical specs — Laser
Fiber laser (standard): 2.000 W (Raycus)
Wavelength: 1.08 ± 10% µm
Beam power max.: 2.000 W
Power consumption: 6.5 kW
Supply voltage: AC 380V ± 10%, 50/60Hz, 3xL+N
Cutting capacity — structural steel: 14 mm; stainless steel: 5 mm; aluminium: 4 mm

Technical specs — Drive capacity
Drive power X-axis: 2 kW
Drive power Y-axis: 2 kW
Drive power Z-axis: 0.4 kW

Technical specs — Measures and weights
Overall dimensions (L x W x H): 16.3 m x 4.74 m x 2.15 m
Weight: 17,800 kg

Product details

• Gantry-style construction with drives on both sides and large working areas to accommodate common plate sizes
• Y-axis portal in aluminum die-cast combining low mass and rigidity for improved dynamics
• Welded, thermally treated machine frame to remove manufacturing stresses and maintain alignment
• Precision linear guides designed for long service life and high cutting speeds with minimal maintenance
• High-precision rack-and-pinion gears on Z and Y axis for reliable positioning accuracy
• Servo motors on all axes
• Machine enclosure and filter extraction system for operator safety; protective glass windows allow observation of the cutting process
• Automatic shuttle table system allows loading/unloading during cutting to minimize downtime
• Perpendicularity/squareness tolerance for laser cutting according to DIN EN ISO 9013-1

Control & software

• User-friendly interface optimized for operation
• Technology database with cutting parameters and preset cycles for various metals
• Software supports efficient selection of process parameters and nesting
• Solenoid and proportional valves regulate gas pressures from the control

Cutting head

• RayTools cutting head with motorized focus adjustment, integrated collision protection and height control
• Maintenance-free beam guidance via flexible fiber-optic cable
• BOCI cutting head available for higher-power systems (from approx. 6 kW)

Laser sources

• Ytterbium fiber laser (Raycus) available from 1,000 to 6,000 W for a balance of cut quality and productivity
• Maintenance-free laser source reduces operating and service costs

Standard equipment (selection)

• Complete system with CNC control (FSCUT2000 / CypCut) — large display, remote controller, remote access, material library and nesting
• High-pressure cutting head with automatic focus adjustment
• Protective enclosure with interlocked front doors and safety glass windows
• Automatic exchange (shuttle) table
• Extraction and filtration unit (dust collector)
• Central lubrication system
• Recirculating water cooling system for the laser source
• Automatic gas console with electro-valves for oxygen and nitrogen

Optional equipment (selection)

• Refrigerated compressed air dryers (Dew Point +3°C, flow rate 0.88 m3/min, incl. filters)
• Pressure reducers for oxygen and nitrogen cylinders
• Additional software packages (offline nesting, CAD/CAM)

Technical characteristics

• Model: ACE Laser 6020 2.0 R
• Working table: up to 6.000 x 2.000 mm
• Fiber laser power (standard): 2.000 W (Raycus)
• Max cutting thickness (structural steel): 14 mm
• Rapid feed: 80 m/min
• Positioning accuracy: 0.05 mm/m — Repeatability: 0.03 mm/m
• Overall dimensions: 16.3 m x 4.74 m x 2.15 m — Weight: 17,800 kg
