Fiber laser cutting machine ACE Laser 6020 4.0 R

for metalsheet metalCNC

Description

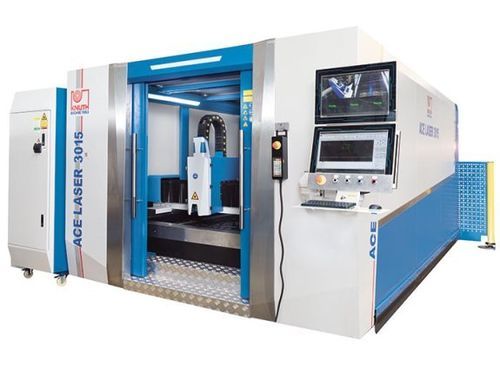

The ACE Laser 6020 4.0 R is a gantry-style industrial laser cutting system equipped with a 4,000 W Ytterbium fiber laser and a 6000 x 2000 mm working area. It is intended for cutting metal parts from single-piece prototypes to large series production across industries such as electronics, aerospace and automotive.

Highlights

• Gantry construction with dual-side drives for large-format plates
• Complete cutting package including dust collector and filtration unit
• KNUTH service package: installation, commissioning and maintenance

Product details

• Gantry-style cutting system with drives on both sides; table options up to 6000 x 2000 mm to suit common plate sizes
• Y-axis gantry in die-cast aluminum for reduced weight and high rigidity to support dynamic motion
• Thermally treated welded machine frame to remove manufacturing stresses and maintain long-term alignment
• Precision linear guides designed for minimal maintenance and high cutting speeds
• High-precision rack-and-pinion gears on X and Y axes for accurate positioning
• Servo motors on all axes for reliable motion control
• Enclosed machine housing with protective viewing windows and interlocked front doors
• Automatic shuttle table system enabling loading/unloading during cutting to reduce downtime
• Perpendicularity and squareness tolerances for laser cutting according to DIN EN ISO 9013-1

Controls & Software

• User-oriented interface for straightforward operation
• Technology database with cutting parameters and preset cycles for various metals
• CypCut CAD/CAM support for nesting, path generation and real-time laser power adjustment
• Solenoid and proportional valves controlled from the CNC for gas pressure regulation

Cutting head

• RayTools cutting head with motorized focus adjustment, integrated collision protection and height control
• Maintenance-free beam delivery via flexible fiber optic cable
• Optional BOCI cutting heads available for high-performance systems (~6 kW and above)

Laser sources

• Ytterbium fiber lasers (Raycus) available from 1,000 W to 6,000 W; 4,000 W configuration shown
• Fiber laser source designed for reduced maintenance and continuous operation
• Higher-power laser options available on request

Safety & Extraction

• Standard dust collector and filtration unit to meet extraction requirements
• Full protective housing with safety interlocks and observation windows

Standard & Optional Equipment (selection)

• CNC control FSCUT2000 and CypCut CAD/CAM (nesting, path generation, real-time power adjustment, breakpoint memory)
• Raycus Ytterbium fiber laser (1–6 kW standard; higher on request)
• High-pressure RayTools cutting head with motorized autofocus
• Automatic shuttle table
• Central lubrication system and recirculating water cooler for the laser source
• Automatic gas console with solenoid valves for Oxygen and Nitrogen
• Operating manual

Technical specifications

• Model: ACE Laser 6020 4.0 R
• Working area (table): 6,000 x 2,000 mm
• Max. workpiece weight: 2,000 kg
• Axis acceleration X/Y: 8 m/s²; Z: 5 m/s²
• Travels (X x Y x Z): 2,020 mm x 6,050 mm x 120 mm
• Rapid feed: 80 m/min
• Table change time: 15–20 s
• Positioning accuracy: 0.05 mm/m; Repeatability: 0.03 mm/m
• Laser: Fiber laser 4,000 W (Raycus)
• Wavelength: 1.08 ± 10% µm
• Power consumption: 16 kW
• Supply voltage: AC 380V ± 10%, 50/60 Hz, 3xL+N
• Cutting capacity: structural steel 20 mm; stainless steel 8 mm; aluminium 8 mm
• Drive power X/Y/Z: 2 kW / 2 kW / 0.4 kW
• Overall dimensions (L x W x H): 16.3 m x 4.74 m x 2.15 m
• Weight: 17,800 kg
