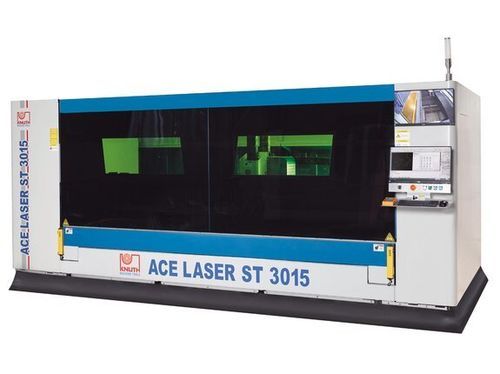

Laser cutting machine ACE.ST 3015 6.0R

for metalsheet metalCNC

Product description The ACE.Laser ST series are advanced fiber laser cutting systems designed to machine large metal sheets within a compact footprint. All components are field-tested and optimized for cutting processes. The machine is supplied with a complete cutting package including filtered vacuum exhaust. A motorised pull-out table enables fast loading and unloading while minimising floor space requirements. The ACE.Laser ST is suitable for industrial laser cutting from single, complex parts to large series production in electronics, aerospace and automotive sectors.

Highlights

• Compact design and excellent beam quality
• Motorised retractable cutting table for fast loading/unloading
• Complete cutting package with matched filter extraction system
• Comprehensive KNUTH service: installation, commissioning and maintenance

Working area Table dimensions: 3.000 mm x 1.500 mm
Max. workpiece weight: 1.000 kg

Travels Travel X-axis: 1.530 mm
Travel Y-axis: 3.050 mm
Travel Z-axis: 100 mm

Rapid feed Rapid feed X-/Y-axis: 80 m/min
Z-axis rapid feed: 40 m/min

Accuracies Positioning accuracy: 0,03 mm/m
Repeatability: 0,03 mm/m

Laser Fiber laser power: 6.000 W
Wavelength: 1,08 ± 10% µm
Beam power max.: 6.000 W
Power consumption: 6,5 kW
Cutting capacity (structural steel): 22 mm
Cutting capacity (stainless steel): 14 mm
Cutting capacity (aluminum): 12 mm

Drive capacity Machine drive capacity X-axis: 1,7 kW
Machine drive capacity Y-axis: 2,4 kW
Machine drive capacity Z-axis: 0,4 kW

Measures and weights Overall dimensions (L x W x H): 4,75 m x 2,26 m x 2,1 m
Weight: 5.350 kg

Product details

• Large 3000 x 1500 mm work area; fiber laser sources available up to 6000 W
• Pull-out work table for fast loading/unloading from the machine enclosure
• Heavy-duty pull-out mechanism supports loads up to 1.000 kg in extended position
• Torsionally rigid gantry driven synchronously from both sides
• Meets perpendicularity/squareness tolerances for laser cutting acc. to DIN EN ISO 9013-1
• Heat-treated welded machine frame for stress-free construction and long-term repeatability
• Low-maintenance precision linear guides designed for high cutting speeds
• High-precision rack-and-pinion gears on X and Y axes for reliable positioning
• Powerful servo drives for high dynamics and precise process parameter implementation
• Fully enclosed cutting system with safety observation window for operator protection
• Hand-held control unit included for quick machine setup

Control

• High-performance CNC with large display and intuitive user interface
• Centralised display of machine functions for short training periods
• Additional monitor with integrated cameras for process monitoring
• Remote access via Ethernet for diagnostics and maintenance
• Proportional valves for gas pressure regulation during cutting

Nesting Software

• CypCut: nesting and cutting software supporting Ai, DXF, PLT, LXD formats
• Technology database with cutting parameters and predefined cycles
• Automatic nesting for time savings and optimal material utilisation

Cutting head

• Models up to 4 kW use RayTools cutting head; 6 kW models use BOCI BLT
• Integrated collision guard, automatic focus positioning and height control
• Continuous focus adjustment according to material conditions
• Low-maintenance design for quick servicing

Laser source

• Raycus fiber lasers: high electro-optic efficiency, good beam quality and wide modulation frequency
• Long-life, low-maintenance design reduces operating cost
• Water cooling ensures temperature stability of thermally stressed components

Vacuum exhaust

• Powerful filtered vacuum exhaust matched to laser power
• Efficient removal of particles and fumes to protect operator health and product quality

Technical specifications

• Table dimensions: 3.000 mm x 1.500 mm
• Max. workpiece weight: 1.000 kg
• Travels (X / Y / Z): 1.530 mm / 3.050 mm / 100 mm
• Rapid feed X-/Y: 80 m/min; Z: 40 m/min
• Positioning accuracy / Repeatability: 0,03 mm/m
• Fiber laser power: 6.000 W; Wavelength: 1,08 ±10% µm
• Power consumption: 6,5 kW
• Cutting capacities: structural steel 22 mm; stainless steel 14 mm; aluminum 12 mm
• Drive capacities (X / Y / Z): 1,7 kW / 2,4 kW / 0,4 kW
• Overall dimensions: 4,75 m x 2,26 m x 2,1 m
• Weight: 5.350 kg
