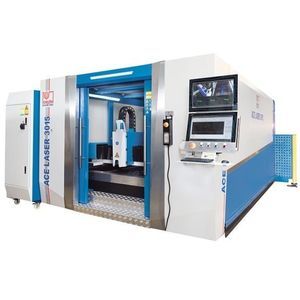

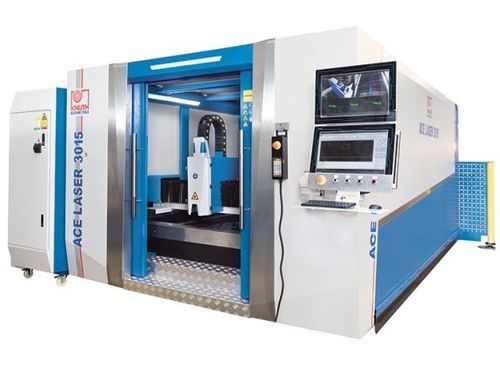

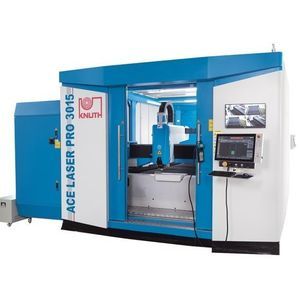

Fiber laser cutting machine ACE Laser 3015 1.5 R

for metalsheet metalCNC

Overview The ACE Laser series combines efficient design and modular equipment to deliver reliable fiber laser cutting for industrial production, from single complex parts to series manufacturing in electronics, aerospace and automotive sectors. The machines are engineered for precision, uptime and safe operation, with a comprehensive standard configuration that supports versatile cutting workflows.

Highlights

• Gantry-style construction with dual-side drives and large table formats
• Automatic shuttle table for loading/unloading during cutting to reduce downtime
• Complete cutting package including filter extraction and gas console

Product details

• Gantry structure with drives on both sides and working area adaptable to common plate sizes
• Y-axis portal in aluminium die-cast for low weight and high rigidity, improving dynamics
• Welded, thermally stabilised machine frame to eliminate production stresses and ensure repeatable accuracy
• Precision linear guides designed for long service life and high cutting speeds with low maintenance
• High-precision rack-and-pinion drives on X and Y axes for reliable positioning
• Servo drives on all axes provide dynamic motion control and high productivity
• Enclosed machine housing with safety glass windows and filter extraction for operator safety and environmental protection
• Automatic exchange/shuttle table minimises production downtime by enabling parallel loading and cutting
• Perpendicularity and squareness tolerances for laser cutting conform to DIN EN ISO 9013-1

Control & Software

• User-friendly CNC control (FSCUT2000) with large display
• Technology database with pre-set cutting parameters for common metals
• CypCut CAD/CAM and nesting software with material library, automatic nesting and breakpoint memory
• Cameras for load and process visualization; remote controller and Ethernet access for diagnostics
• Solenoid and proportional valves controlled from CNC to regulate gas pressures

Cutting head

• RayTools cutting head with motorised focus, collision guard and height control (autofocus)
• Fiber optic beam delivery for maintenance-free operation
• High-performance heads (e.g. BOCI) available for systems ≥ 6 kW

Laser source

• Ytterbium fiber laser (Raycus) in powers from 1 kW to 6 kW; this configuration: 1.5 kW
• Low-maintenance laser source optimised for cutting steel, stainless steel and aluminium
• Pulse frequency and beam characteristics adapted for precise edge quality and productivity

Filtration & Extraction

• Standard dust collector and filtration unit with high filtration efficiency (example: 99.997% rated)

Technical specifications

• Model: ACE Laser 3015 1.5 R
• Working area — Table dimensions: 3000 mm x 1500 mm
• Working area — Max. workpiece weight: 1000 kg
• Axis acceleration X/Y: 10 m/s²; Z: 5 m/s²
• Travels — X: 1520 mm; Y: 3050 mm; Z: 100 mm
• Rapid feed: 100 m/min; Table change time: 10 s–15 s
• Positioning accuracy: 0.03 mm/m; Repeatability: 0.02 mm/m
• Laser — Fiber laser nominal power: 1.5 kW; Wavelength: 1.08 ±10% µm; Pulse frequency: 50–5000 Hz
• Power consumption: 5.3 kW; Supply voltage: AC 380V ±10%, 50/60Hz, 3xL+N
• Cutting capacity — Structural steel: 12 mm; Stainless steel: 4 mm; Aluminium: 3 mm
• Drive capacities — X: 1 kW; Y: 1.5 kW; Z: 0.4 kW
• Overall dimensions (L x W x H): 9.8 m x 3.7 m x 2.15 m; Weight: 8,000 kg
