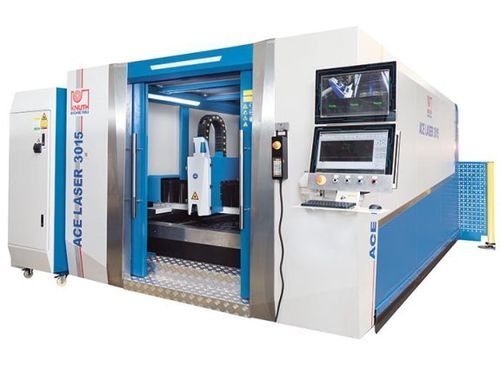

Fiber laser cutting machine ACE Laser 3015 3.0 R

for metalsheet metalCNC

Description
The ACE Laser series provides an industrial laser cutting system designed for accurate cutting and consistent part quality across single-piece and series production. The machines are engineered for productivity, safety and long-term reliability with a broad standard equipment package for efficient operation and flexible use in electronics, aerospace and automotive applications.

Highlights

• Gantry-style, double-drive construction
• Complete cutting package including dust collector and filtration
• KNUTH service: commissioning, setup and maintenance support

Product details

• Gantry-style construction with drives on both sides; working area examples from 3,000 x 1,500 mm up to 6,000 x 2,000 mm to fit common plate sizes
• Y-axis portal in aluminum die-cast for low mass and high rigidity, delivering excellent dynamics
• Thermally treated, welded machine frame to remove manufacturing stresses and ensure long-term geometric stability
• Precision linear guides designed for low maintenance and high cutting speeds
• High-precision rack-and-pinion drives on X and Y for reliable positioning accuracy
• Powerful servomotors on all axes for dynamic performance
• Machine enclosure with safety glass windows for operator protection and observation
• Automatic shuttle table system allows loading/unloading during cutting to minimize downtime
• Perpendicularity/squareness tolerances for laser cutting according to DIN EN ISO 9013-1

Control

• User-friendly control interface optimized for cutting applications
• Technology database with pre-set cutting parameters and cycles for various metals
• Software tools for selecting process parameters and efficient nesting of cutting jobs
• Solenoid and proportional valves regulate gas pressures (configured via the control) during cutting

Cutting head

• High-quality RayTools cutting head with motorized focus adjustment, integrated collision protection and height control
• Maintenance-free beam guidance via flexible fiber optic cable for long service life
• High-power systems (from ~6 kW) can be equipped with BOCI high-performance cutting heads

Laser sources

• Ytterbium fiber lasers (e.g. Raycus) typically available from 1 kW to 6 kW for high cut quality and productivity
• Maintenance-free laser source reduces operating and upkeep costs
• Higher-power laser configurations available on request

Other standard features

• Automatic exchange/shuttle table system (loading/unloading during cutting)
• Dust collector and filtration unit (high filtration efficiency)
• Central lubrication and recirculating water cooling for the laser source
• Automatic gas console with electrovalves for oxygen and nitrogen

Technical specifications

• Table dimensions: 3,000 mm x 1,500 mm
• Max. workpiece weight: 1,000 kg
• Axis acceleration X/Y: 10 m/s²
• Axis acceleration Z: 5 m/s²
• Travel X-axis: 1,520 mm
• Travel Y-axis: 3,050 mm
• Travel Z-axis: 100 mm
• Rapid feed: 100 m/min
• Table change time: 10 s - 15 s
• Positioning accuracy: 0.03 mm/m
• Repeatability: 0.02 mm/m
• Fiber laser (standard): 3,000 W
• Beam power max.: 3,000 W
• Wavelength: 1.08 ± 10% µm
• Pulse frequency: 50 ~ 5k Hz
• Power consumption: 12 kW
• Supply voltage: AC 380V ± 10%, 50/60Hz, 3xL+N
• Cutting capacity (structural steel): 18 mm
• Cutting capacity (stainless steel): 8 mm
• Cutting capacity (aluminum): 6 mm
• Drive power X-axis: 1 kW; Y-axis: 1.5 kW; Z-axis: 0.4 kW
• Overall dimensions (L x W x H): 9.8 m x 3.7 m x 2.15 m
• Machine weight: 8,000 kg
