Plasma cutting machine Plasma-Jet TrueCut K 3060

for metalsheet metalCNC

Overview

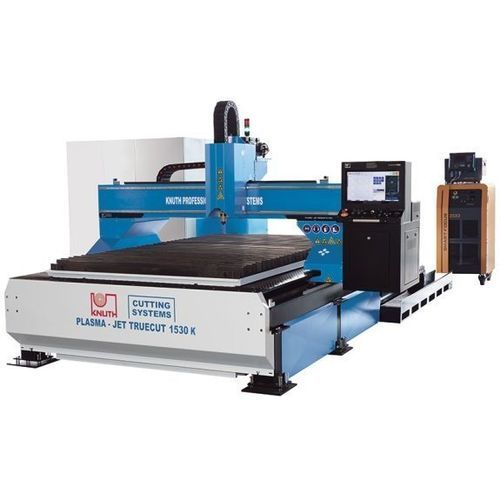

The Plasma-Jet TrueCut K 3060 is a plasma cutting system designed for production and one-off manufacture of complex parts. Equipped with Eckelmann control technology and Kjellberg plasma sources, the machine is engineered for high loads and continuous multi-shift operation. A wide range of optional equipment enables tailored solutions including multiple torches, oxy-fuel heads, miter cutting and tube processing units.

Highlights

• Freestanding heavy‑duty table for thermal and mechanical decoupling and high accuracy
• Eckelmann CNC with EtherCAT for full cutting process control and nesting
• Configured for high productivity and multi‑shift operation
• Extensive option list for customized cutting configurations

Working area (technical data)
Cutting width: 3.000 mm
Cutting length: 6.000 mm
Table height: 700 mm
Table load capacity: 520 kg/m2
Rapid feed: 18.000 mm/min
Standard plasma source: Kjellberg (various Smart Focus and Q series options)

Measures and weights
Weight: 9.500 kg

Construction

• Stand‑alone cutter table with rigid steel construction for high load capacity
• Table placement eliminates thermal and mechanical influences on the cutter guide system
• Table prepared for dust/fume extraction with electro‑pneumatically actuated suction flaps

Transmission and drives

• Dynamic AC servo drives (Panasonic) on all axes with maintenance‑free, zero‑backlash planetary gears
• Low‑wear helical gears and rack drives designed for continuous operation
• Linear guides on all axes sized for long life and smooth motion at high speeds (X/Y guide widths: 20/30 mm)

Cutting head

• Z axis with ball screw transmission and servo‑driven automatic torch height control
• Quick‑coupling for fast cutting head exchanges to reduce tooling time
• Use of stored cutting parameters in the control for optimized cuts
• Available options: 5‑axis cutter head, tube cutter and multiple torch configurations

Control

• Eckelmann CNC controller
• Eckelmann IBE nesting software included as standard

Plasma source selection

• Smart Focus 130 – max cut 40 mm, plunge 25 mm, recommended 1–32 mm
• Smart Focus 170 – max cut 50 mm, plunge 30 mm, recommended 1–35 mm
• Smart Focus 200 – max cut 60 mm, plunge 30 mm, recommended 1–40 mm
• Smart Focus 300 – max cut 80 mm, plunge 40 mm, recommended 1–60 mm
• Smart Focus 400 – max cut 100 mm, plunge 50 mm, recommended 1–70 mm (stainless steel)
• Q 1500 – max cut 60 mm, plunge 30 mm, recommended 0.5–40 mm
• Q 3000 – max cut 80 mm, plunge 50 mm, recommended 0.5–60 mm

Notes
All specified cutting and piercing depths depend on material, chosen cutting technology and guide system.

Characteristics / technical specifications

• Model series: Plasma-Jet TrueCut K
• Working area: 3.000 x 6.000 mm
• Table height: 700 mm
• Table load capacity: 520 kg/m2
• Rapid feed: 18.000 mm/min
• Standard plasma source: Kjellberg (Smart Focus / Q series)
• Weight: 9.500 kg
• Control: Eckelmann CNC with IBE software and EtherCAT
• Drive technology: Panasonic AC servos, planetary gears, helical gears, linear guides
• Options: multiple torches, oxy‑fuel heads, miter cuts, tube processing, 5‑axis head
