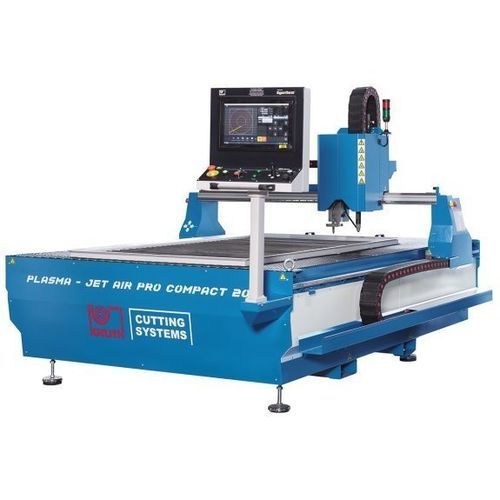

Plasma cutting machine Plasma-Jet AirPro Compact 1515

for metalsheet metalCNC

Description
The Plasma-Jet AirPro Compact series delivers precise plasma cutting with low operating costs. Designed as an economical solution for single-part production and small series manufacturing, these compact machines are suited to workshops requiring a small footprint and reliable, easy-to-operate equipment.

Highlights

• Compact design for fast commissioning
• Compatible with air-plasma sources from Hypertherm or Kjellberg (optional)
• Improved CNC performance via EtherCAT
• Professional nesting software included
• Supplied with vacuum table; optional water cutting table

Construction

• Monobloc frame with integrated guides allows transport of the machine assembled and ensures quick commissioning
• Cutting table prepared for connection to extraction; water table available as an option
• Working area extracted by mechanically switched segments on the moving bridge for efficient filtration and extraction
• Material support grid made of replaceable curved flat steel elements

Guides and drives

• Selected components ensure cutting functionality and process reliability
• Bridge driven synchronously on both sides for dynamic motion without tipping torque
• Powerful AC servomotors with backlash-free planetary gearboxes and precision rack drives for contour accuracy
• High-quality linear guides on all axes: robust, precise and durable

Plasma sources / cutting capacity (examples)

• Kjellberg CutFire 100i: cutting up to 40 mm, piercing up to 20 mm
• Hypertherm Powermax 105 Sync: cutting up to 38 mm, piercing up to 22 mm
• Hypertherm Powermax 125: cutting up to 44 mm, piercing up to 25 mm

Cutting head

• Nozzle-to-sheet distance maintained by arc-controlled Z-axis height adjustment
• Integrated sensor-controlled anti-collision protection to prevent damage to machine and workpiece
• Magnetic coupling for faster torch setup and maintenance

Controls and software

• PULSER 3 CNC unit with 15" touchscreen designed for modern cutting applications and ease of use
• EtherCAT fieldbus for fast, reliable CNC performance
• Depending on selected plasma source: ProNest LT Essentials or IBE cncCut Nest supplied

Standard equipment (examples)

• PULSER 3 CNC unit
• 15" HMI touchscreen
• ProNest LT Essentials (depending on plasma source)
• Table prepared for filtration system (mechanical closure control)
• Automatic torch height control with THC sensor
• Cutting torch with magnetic coupling and collision detector
• INVT servomotors and drives
• Laser pointer
• User manual

Optional equipment (examples)

• Extraction 2,500 m³/h (extraction/filtration system)
• Powermax 125 plasma source
• Powermax 105 Sync plasma source
• ProNest LT software option (additional license)
• Water table for plasma cutting installations (instead of vacuum table)
• Engraving/marking system for PowerMax and MaxPro
• CutFire 100i, MaxPro 200 and other plasma source options

Technical specifications

• Cutting width: 1550 mm
• Cutting length: 1550 mm
• Nozzle-to-support distance: 200 mm
• Table height: 500 mm
• Table load capacity: 800 kg/m²
• Rapid traverse: 15,000 mm/min
• Positioning accuracy: 0.05 mm
• Weight: 1,250 kg
• Overall dimensions (L x W x H): 2.25 m x 2.5 m
