Plasma cutting machine Jet AirPro 1530

for metalsheet metalCNC

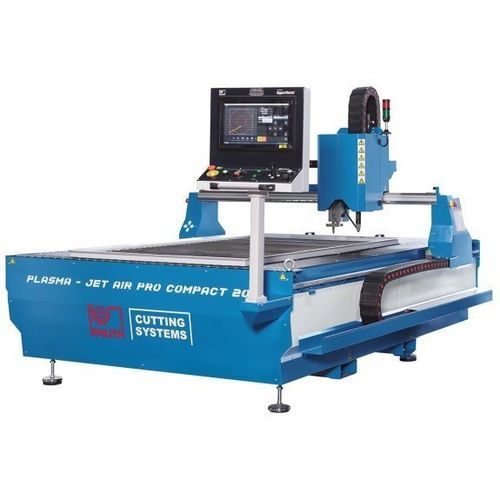

Overview The Plasma-Jet AirPro Compact 1530 is a compact plasma cutting table designed for single-part and small-series production. It delivers industrial cutting performance with a small footprint and low operating costs, suitable for workshop environments and light production facilities.

Highlights

• Compact one-piece design for fast setup and transport in assembled state
• Compatible with air plasma sources from Hypertherm or Kjellberg (optional)
• EtherCAT fieldbus for high CNC performance
• Professional nesting software included
• Standard vacuum table; water cutting table available as an option

Construction

• Monobloc frame with guides integrated into the table chassis for rigidity and easy commissioning
• Table prepared for vacuum extraction; alternatively available as water cutting table
• Work area vacuumed in mechanically switched segments to optimise filter and extraction efficiency
• Material support grid composed of exchangeable arched flat steel elements

Guideways and Drives

• Selected components ensure cutting functionality and process reliability
• Machine bridge driven synchronously from both sides for high dynamics and no oscillation torque
• Powerful AC servomotors with maintenance-free planetary gears and precision helical gear drives for accurate contours
• High-quality linear guides on all axes: robust, precise and long-lived

Cutting capacity (examples)

• Kjellberg CutFire 100i: cutting up to 40 mm, piercing up to 20 mm
• Hypertherm Powermax 105 Sync: cutting up to 38 mm, piercing up to 22 mm
• Hypertherm Powermax 125: cutting up to 44 mm, piercing up to 25 mm

Cutting head

• Z-axis height controlled by arc sensing to maintain nozzle-to-plate distance
• Sensor-controlled collision guard to protect machine and workpiece
• Magnetic coupling for quick burner setup and maintenance

Control and software

• CNC unit PULSER 3 with 15" touchscreen (standard)
• EtherCAT fieldbus for improved speed and reliability
• ProNest LT Essentials or IBE cncCut Nest included depending on plasma source

Standard equipment (summary)

• CNC unit PULSER 3 (15" touchscreen)
• 15" HMI touchscreen
• ProNest LT Essentials or IBE cncCut Nest (depending on configuration)
• Table prepared for filtration/extraction
• Automatic torch height control (THC) with sensor
• Plasma torch with magnetic coupling and collision detector
• Servomotors and drives (INVT or equivalent)
• Laser pointer, user manual

Optional equipment (examples)

• Powermax 105 Sync plasma source (SmartSYNC® capability)
• Powermax 125 plasma source for higher productivity
• Maxpro 200 plasma source for heavy-duty use
• CutFire 100i plasma source (spiral gas technology)
• Engraving/marking kit for PowerMax/MaxPro
• Water cutting table (in place of vacuum table)
• Extraction/filtration units (e.g. 2,500 m³/h)
• Additional ProNest LT license

Working area
Cutting width: 1.550 mm
Cutting length: 3.050 mm
Distance torch–support table: 200 mm
Table height: 500 mm
Table load capacity: 800 kg/m2
Rapid feed: 15.000 mm/min
Positioning accuracy: 0.05 mm

Measures and weights
Weight: 1.550 kg
Overall dimensions (L x W x H): 2.25 m x 4.15 m

Characteristics / technical specifications

• Cutting area: 1.550 x 3.050 mm
• Torch distance to table: 200 mm
• Table height: 500 mm
• Table load capacity: 800 kg/m2
• Rapid traverse: 15.000 mm/min
• Positioning accuracy: 0.05 mm
• Weight: 1.550 kg
• Dimensions: 2.25 m x 4.15 m
• Compatible with Hypertherm and Kjellberg air plasma sources (options)
• CNC PULSER 3 (15" touchscreen) included
