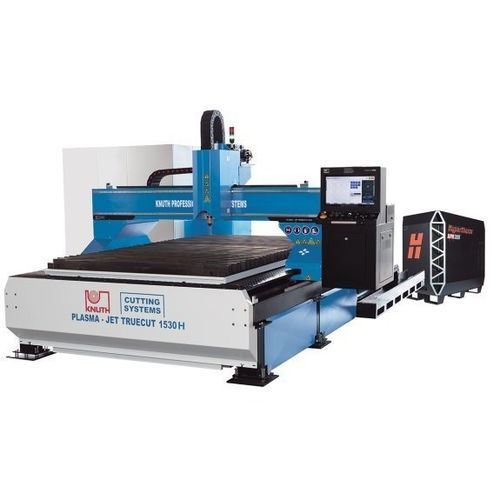

Plasma cutting machine Plasma-Jet TrueCut 1530 H

for metalsheet metalCNC

Overview
The machines of the Plasma-Jet TrueCut H-series are highly specialized cutting systems for the production or individual production of complex parts. This series is designed for high loads in multi-shift operation and is equipped with the latest Hypertherm technology and high-quality components. The extensive optional equipment enables versatile, tailor-made solutions for specific customer requirements, e.g. multiple torches, oxy-fuel cutting heads, mitre cuts or pipe processing units.

Highlights

• Independent table for high accuracy
• Powerful ProNest LT nesting software for optimised production
• Customised for the use of HYPERTHERM plasma sources (option)
• High productivity, designed for multi-shift operation
• Extensive options for customised solutions

Construction

• Stand-alone cutter table features rigid steel construction for high load capacity
• Stand-alone table eliminates thermal and mechanical influences on the plasma cutter system
• Table is prepared for dust collection system, equipped with electro-pneumatically actuated suction flaps for efficient fume extraction of the active cutting segment

Transmission and drives

• Dynamic AC servo drives from Panasonic on all axes with maintenance-free, zero-backlash planetary gears
• Low-wear and low-maintenance helical gears designed for continuous operation
• Linear guide ways on all axes, designed for long life and smooth motion even at high speeds (X/Y guide widths 20/30 mm)
• Machine structure and component selection designed to enable multi-shift operation

Cutting head

• Z axis with ball screw transmission and servo-driven automatic torch height control
• Quick-coupling for cutter head allows quick head exchanges to reduce tooling time
• Use existing cutting parameters stored in the control to find optimum cut
• Optimum bed speed even for fine contours and tight radii
• Available with 5-axis cutter head, tube cutter and many more options

Control

• CNC controller from Hypertherm - EDGE® Connect
• ProNest LT nesting software delivered as standard

Plasma source options (select by required power)

• Maxpro 200 — cutting capacity in unalloyed steel: virtually burr-free cutting capacity 20 mm; production plunge-cut capacity 32 mm; severing cut up to 75 mm
• XPR 170 — cutting capacity in unalloyed steel: plunge cut max. 40 mm; severing cut max. 60 mm
• XPR 300 — cutting capacity in unalloyed steel: plunge cut max. 50 mm; severing cut max. 80 mm

Working area
Cutting width: 1.500 mm
Cutting length: 3.000 mm
Table height: 700 mm
Table load capacity: 520 kg/m2
Rapid feed: 18.000 mm/min
Plasma source: Hypertherm

Measures and weights
Weight: 3.100 kg

Caractéristiques / spécifications techniques

• Model: Plasma-Jet TrueCut 1530 H
• Working area — cutting width: 1.500 mm; cutting length: 3.000 mm
• Table height: 700 mm
• Table load capacity: 520 kg/m2
• Rapid feed: 18.000 mm/min
• Plasma source options: Maxpro 200, XPR 170, XPR 300 (Hypertherm)
• Control: Hypertherm EDGE® Connect; ProNest LT included
• Weight: 3.100 kg
• Designed for multi-shift industrial operation; many optional accessories (5-axis head, tube cutting systems, extraction systems, beveling, oxy-fuel head, etc.)
