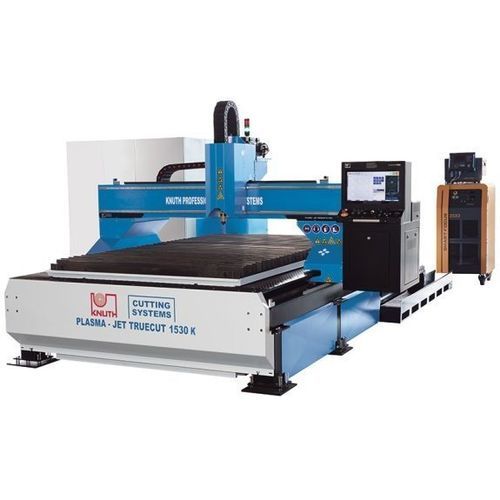

Plasma cutting machine Plasma-Jet TrueCut K 1530

for metalsheet metalCNC

Product description
The Plasma-Jet TrueCut K 1530 is a specialized plasma cutting system designed for production and one-off fabrication of complex components. It integrates Eckelmann control technology and Kjellberg plasma sources and is engineered for heavy-duty, multi-shift operation. Modular options enable customized configurations including multiple torches, oxy-fuel heads, 5-axis beveling and tube cutting units.

Highlights

• Independent, freestanding table construction for thermal isolation and high precision
• Eckelmann CNC with EtherCAT for coordinated cutting control and nesting
• Designed for high productivity and continuous multi-shift use
• Extensive option list to adapt the machine to specific production needs

Working area (from Technical Specs)

• Cutting width: 1500 mm
• Cutting length: 3000 mm
• Table height: 700 mm
• Table load capacity: 520 kg/m²
• Rapid feed: 18,000 mm/min
• Plasma source (standard/choices): Kjellberg

Product details
Construction

• Freestanding steel cutter table to minimize thermal and mechanical influence on guideways
• Table prepared for dust/fume extraction with electro-pneumatically actuated suction flaps in the active segment
• Robust design to accommodate large and heavy parts

Transmission and drives

• AC servo drives (Panasonic) on all axes with zero-backlash planetary gears
• Low-wear helical gear racks and linear guides sized for long life at high speeds (X/Y guides 20/30 mm)
• Component selection and structure engineered for continuous, multi-shift operation

Cutting head

• Z-axis ball-screw transmission with servo-controlled automatic torch height control
• Quick-change coupling for rapid head exchanges to reduce tooling time
• Built-in cutting parameter database in the controller for optimized cuts
• Available options: 5-axis cutter head, tube cutting unit, multiple-torch configurations

Control

• Eckelmann CNC controller supplied as standard
• Eckelmann IBE nesting/cncCUT software included for panel optimization

Plasma source options (selection)

• Smart Focus 130 – max cut 40 mm, pierce 25 mm, recommended 1–32 mm
• Smart Focus 170 – max cut 50 mm, pierce 30 mm, recommended 1–35 mm
• Smart Focus 200 – max cut 60 mm, pierce 30 mm, recommended 1–40 mm
• Smart Focus 300 – max cut 80 mm, pierce 40 mm, recommended 1–60 mm
• Smart Focus 400 – max cut 100 mm, pierce 50 mm, recommended (stainless) 1–70 mm
• Q 1500 – max cut 60 mm, pierce 30 mm, recommended 0.5–40 mm
• Q 3000 – max cut 80 mm, pierce 50 mm, recommended 0.5–60 mm

Note
All cutting and piercing capacities depend on material, chosen plasma technology and guide system.

Technical specifications

• Model: Plasma-Jet TrueCut K 1530
• Working area (W×L): 1500 × 3000 mm
• Table height: 700 mm
• Table load capacity: 520 kg/m²
• Rapid feed: 18,000 mm/min
• Plasma source: Kjellberg (multiple options)
• Weight: 3,100 kg
• Controller: Eckelmann CNC (E°EXC 880 / E°CUT ECO) with IBE software
• Suitable for multi-shift operation; optional: multiple torches, oxy-fuel heads, 5-axis head, tube cutting units, filter preparation
