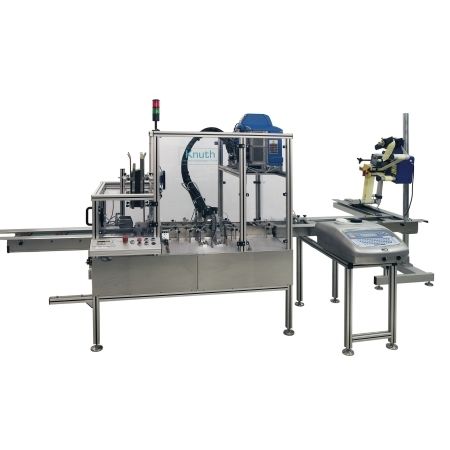

Compact cartoning machine UKK4

semi-automaticfully-automatic

Most important customer advantages • - Low cost • - Low required space • - Wide range of sizes • - Boxes with a fifth flap (Euroflap) • - Hotmelt system • - Continuously adjustable from 0 - 25 cycle/ min • - High versatility • - Low change-over times UKK4 - Machine description: The UKK4 is a compact cartonning machine with fully automatic or semiautomatic module. The product supply can take place automatically or manually (depending upon application). The machine is suitable outstanding for small series or special requirements. The UKK4 can be rebuild within a short time and used economically. The UKK4 is an intermittent working cartonning machine (Linearkartonierer), the folding box can be taken and inserted opened into a transport system by a setting up device . This transport system induces now the folding boxes gradually (linear) from station to station, where the differently resulting work procedures are implemented. For example: Module of the product, locking the folding box (with hot glue or closing mechanism), supplying folders etc. The UKK4 can be supplemented at the discharge with a lot of accessories (printer, applying labels, code control, etc.)
