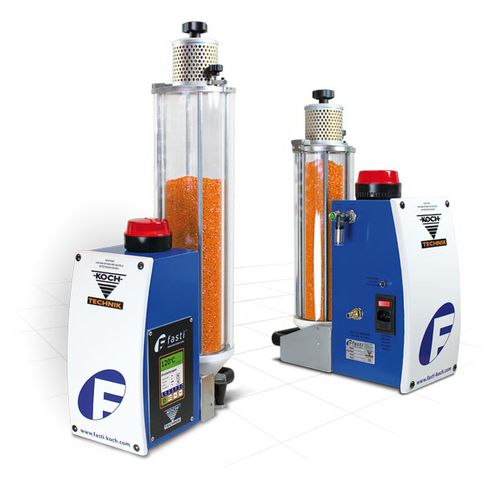

Desiccant compressed air dryer ERD MICRO+

compact

micro injection molding or mini extruders: • Proven ERD compressed air technology • Very compact design • Drying hopper (material container) made of special glass • Container sizes: 1/2, 1, 2, 3 litres • Control adapted to the respective container size • Low maintenance and energy requirements • Ideal for all plastics, including plastics up to 160 °C • Dew point down to -65°C if required • Simple installation (plug & play) • Installation as a top-mounted dryer on all standard machines • AirJet conveying optional • Extensive system accessories Our most compact pellet dryer with ERD compressed air technology ERD technology also guarantees perfect drying results and very low operating costs with our ERD Micro+. Pre-dried compressed air (6-10 bar) is expanded to atmospheric pressure. This produces dry process air with a very low dew point. Heated, it is fed into the glass drying container, flows through the granulate and thus removes the moisture. Very simple dryer control: • Drying time monitoring • Integrated weekly switching programme • Material database • Power and air volume control adapted to the material flow • Control for conveying/emptying • Dew point display with dew point sensor as an option • Optional interfaces: USB, Ethernet
