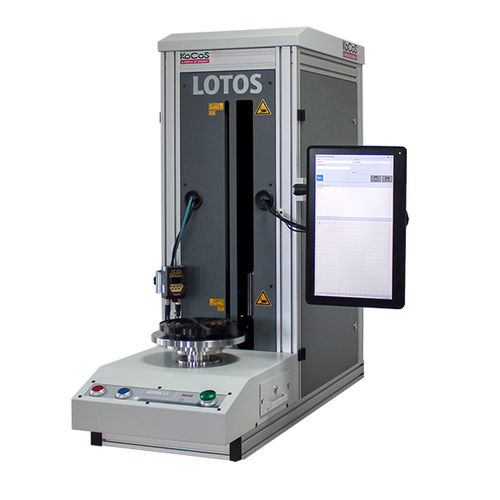

3D measuring system LOTOS LSi

shapedimensionaloptical

LOTOS LSi Extremely robust stand-alone system optimized for inline measurements with integrated operator touch screen and a high-performance evaluation unit for maximum measurement and evaluation speeds. The design is optimized for integration into the manufacturing process and is therefore particularly suitable for in-process 100% inline inspections. Extremely flexible test part loading via robot or by gantry is ensured by the generous free space above and around the measuring table. LOTOS - 3D measurement and inspection LOTOS automatic measuring systems can measure the full outer and inner contours or individual areas of any measurement object quickly and precisely, irrespective of the shape, and test them for defects. The three-dimensional, non-contact measurement is carried out using optical measurement sensors with accuracy in the μm range. The result is a representation of the measurement object as a 3D model. Powerful, intuitive software allows the measurement results to be assessed extremely quickly.
