Circuit breaker testing device ACTAS BTT 2.0

currentperformanceautomatic

ACTAS Switchgear Test System
The ACTAS series test systems have been specially developed for functional testing of all types of switchgear, such as

• GIS and AIS circuit breakers
• Load break switches
• Disconnectors and earthing switches

Initial measurements are carried out on switchgear as early as the development phase, and KoCoS Messtechnik AG also offers stationary, fully automatic test systems for final testing at the factory.
To complete the ACTAS product group, there are of course also portable test systems that can be used for inspection tests at the installation site of the switchgear.

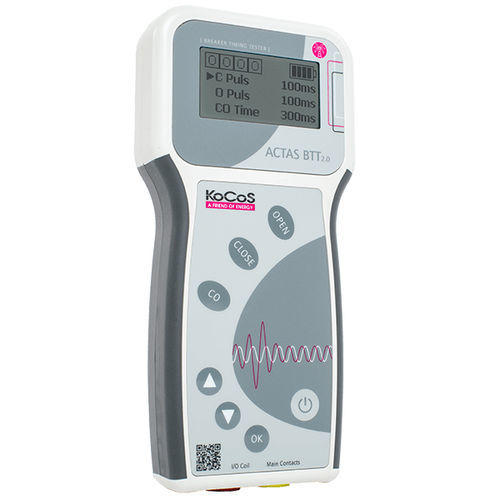

High-precision, battery-operated timing analyser
ACTAS BTT 2.0 is a battery-operated, hand-held measuring device which can determine operating times, contact synchronicity, sequence time and coil currents extremely quickly and easily. Thanks to this extensive functionality and its high measurement accuracy, ACTAS BTT 2.0 can be put to a wide range of different uses when measuring the operating times of low-, medium- and high-voltage switchgear devices, relay contacts, contactors and switch disconnectors, to mention but a few applications.

Technical highlights

• Determination of operating times
• Test for contact synchronicity
• Determination of CO sequence time
• Measurement of coil currents
• Compact, ergonomic design
• Battery operation for up to 18 hours
• Easy-to-read graphical display
• Bluetooth incl. remote control function over the KoCoS Test Center APP for Andoid and IOS
• Complete with accessories and bag

ACTAS Operating Software
The output of switching sequences and measurements on the switching device are controlled entirely by the operating software in ACTAS test systems.
