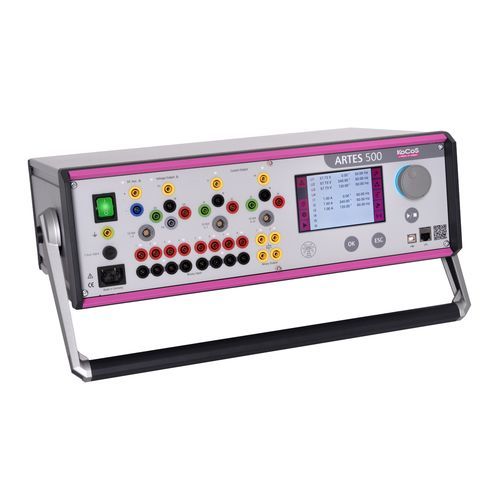

Protection relay testing device ARTES 500

electricshort-circuitautomatic

Secure a 5% introductory discount until December 31st, 2025! The ARTES 500 is the successor to the ARTES 460, now even more convenient and with targeted improvements. ARTES 500 is the compact and universal solution for testing protective relays. Thanks to its integrated operating unit, low weight and minimal noise emission, the robust test system is equally suitable for on-site use and for use in the laboratory. High-precision amplifiers and measuring units ARTES 500 is the ideal solution for professional 3-phase relay testing. All amplifier outputs can be set separately and independently of each other in terms of phase, amplitude and frequency and are equipped with overload and short-circuit protection. The current amplifiers deliver a maximum test current of 6 x 20 A. Parallel operation of the current outputs enables the output of up to 3 x 40 A for 3-phase applications and up to 1x 60 A for 1-phase applications. Operation in upright position All connections and interfaces are located on the front panel. This means that the test system can be placed and operated vertically on the floor if space is limited or there is no work table. Status display LEDs The statuses and operating modes of the inputs and outputs are indicated by LEDs on the front of the device. A quick glance is all it takes to see which outputs are active and which states are present at the binary inputs and outputs. Integrated TJCP user interface The TJCP user interface is a special feature. With its high-resolution 5" touchscreen with Smart Touch technology, many tests can be carried out quickly and easily without the need to connect an external PC.
